776163-2
ActiveTE Connectivity AMP Connectors

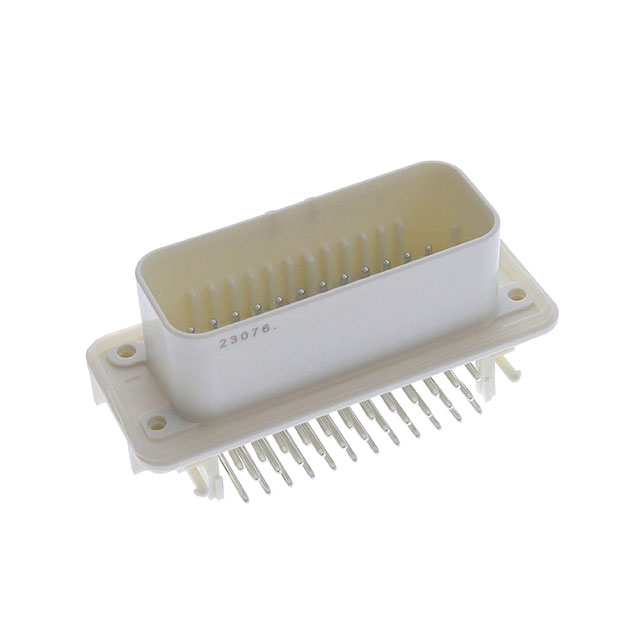

CONN HEADER R/A 35POS 4MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
776163-2
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 35POS 4MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 776163-2 | 776163 Series |
|---|---|---|
| Applications | Industrial, Automotive | Industrial, Automotive |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Gold-Palladium |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Board Guide, Sealed | Board Guide, Sealed |
| Insulation Color | Natural | Orange, Gray, Natural |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 35 | 35 |
| Number of Positions Loaded | All | All |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 105 ░C | 105 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.157 " | 0.157 " |
| Pitch - Mating | 4 mm | 4 mm |
| Row Spacing - Mating | 0.157 in | 0.157 in |
| Row Spacing - Mating | 4 mm | 4 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
776163 Series
CONN HEADER R/A 35POS 4MM
| Part | Features | Voltage Rating | Contact Type | Contact Shape | Number of Positions | Insulation Material | Termination | Connector Type | Style | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Shrouding | Mounting Type | Insulation Color | Number of Rows | Fastening Type | Current Rating (Amps) | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-776163-6 | Board Guide, Sealed | 250 VAC | Male Pin | Circular | 35 | Polybutylene Terephthalate (PBT), Glass Filled | Solder | Header | Board to Cable/Wire | 0.157 in | 4 mm | All | Gold-Palladium | 0.157 " | 4 mm | 125 °C | -40 °C | Automotive, Industrial | Shrouded - 4 Wall | Panel Mount, Right Angle, Through Hole | Orange | 3 | Locking Ramp | Varies by Wire Gauge | Brass |
TE Connectivity AMP Connectors 776163-4 | Board Guide, Sealed | 250 VAC | Male Pin | Circular | 35 | Polybutylene Terephthalate (PBT), Glass Filled | Solder | Header | Board to Cable/Wire | 0.157 in | 4 mm | All | 0.157 " | 4 mm | 105 ░C | -40 °C | Automotive, Industrial | Shrouded - 4 Wall | Panel Mount, Right Angle, Through Hole | Gray | 3 | Locking Ramp | Varies by Wire Gauge | Brass | |
TE Connectivity AMP Connectors 776163-2 | Board Guide, Sealed | 250 VAC | Male Pin | Circular | 35 | Polybutylene Terephthalate (PBT), Glass Filled | Solder | Header | Board to Cable/Wire | 0.157 in | 4 mm | All | 0.157 " | 4 mm | 105 ░C | -40 °C | Automotive, Industrial | Shrouded - 4 Wall | Panel Mount, Right Angle, Through Hole | Natural | 3 | Locking Ramp | Varies by Wire Gauge | Brass | |
TE Connectivity AMP Connectors 1-776163-2 | Board Guide, Sealed | 250 VAC | Male Pin | Circular | 35 | Polybutylene Terephthalate (PBT), Glass Filled | Solder | Header | Board to Cable/Wire | 0.157 in | 4 mm | All | Gold-Palladium | 0.157 " | 4 mm | 125 °C | -40 °C | Automotive, Industrial | Shrouded - 4 Wall | Panel Mount, Right Angle, Through Hole | Natural | 3 | Locking Ramp | Varies by Wire Gauge | Brass |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.04 | |
| 32 | $ 12.43 | |||
| 96 | $ 11.95 | |||
Description
General part information
776163 Series
Connector Header Panel Mount, Through Hole, Right Angle 35 position 0.157" (4.00mm)
