1-776163-6

Active

TE Connectivity AMP Connectors

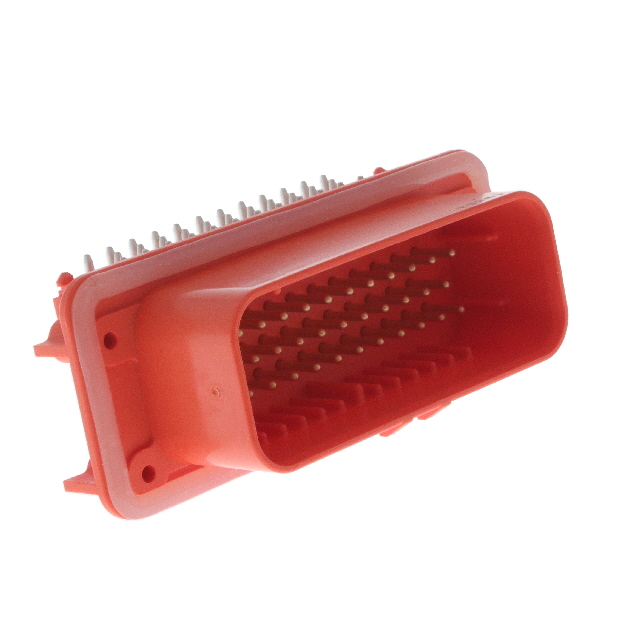

CONN HEADER R/A 35POS 4MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-776163-6

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 35POS 4MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-776163-6	776163 Series

Applications	Industrial, Automotive	Industrial, Automotive
Connector Type	Header	Header
Contact Finish - Mating	Gold-Palladium	Gold-Palladium
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Board Guide, Sealed	Board Guide, Sealed
Insulation Color	Orange	Orange, Gray, Natural
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	35	35
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	125 °C	105 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.157 "	0.157 "
Pitch - Mating	4 mm	4 mm
Row Spacing - Mating	0.157 in	0.157 in
Row Spacing - Mating	4 mm	4 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

776163 Series

CONN HEADER R/A 35POS 4MM

Part	Features	Voltage Rating	Contact Type	Contact Shape	Number of Positions	Insulation Material	Termination	Connector Type	Style	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Shrouding	Mounting Type	Insulation Color	Number of Rows	Fastening Type	Current Rating (Amps)	Contact Material
TE Connectivity AMP Connectors 1-776163-6	Board Guide, Sealed	250 VAC	Male Pin	Circular	35	Polybutylene Terephthalate (PBT), Glass Filled	Solder	Header	Board to Cable/Wire	0.157 in	4 mm	All	Gold-Palladium	0.157 "	4 mm	125 °C	-40 °C	Automotive, Industrial	Shrouded - 4 Wall	Panel Mount, Right Angle, Through Hole	Orange	3	Locking Ramp	Varies by Wire Gauge	Brass
TE Connectivity AMP Connectors 776163-4	Board Guide, Sealed	250 VAC	Male Pin	Circular	35	Polybutylene Terephthalate (PBT), Glass Filled	Solder	Header	Board to Cable/Wire	0.157 in	4 mm	All		0.157 "	4 mm	105 ░C	-40 °C	Automotive, Industrial	Shrouded - 4 Wall	Panel Mount, Right Angle, Through Hole	Gray	3	Locking Ramp	Varies by Wire Gauge	Brass
TE Connectivity AMP Connectors 776163-2	Board Guide, Sealed	250 VAC	Male Pin	Circular	35	Polybutylene Terephthalate (PBT), Glass Filled	Solder	Header	Board to Cable/Wire	0.157 in	4 mm	All		0.157 "	4 mm	105 ░C	-40 °C	Automotive, Industrial	Shrouded - 4 Wall	Panel Mount, Right Angle, Through Hole	Natural	3	Locking Ramp	Varies by Wire Gauge	Brass
TE Connectivity AMP Connectors 1-776163-2	Board Guide, Sealed	250 VAC	Male Pin	Circular	35	Polybutylene Terephthalate (PBT), Glass Filled	Solder	Header	Board to Cable/Wire	0.157 in	4 mm	All	Gold-Palladium	0.157 "	4 mm	125 °C	-40 °C	Automotive, Industrial	Shrouded - 4 Wall	Panel Mount, Right Angle, Through Hole	Natural	3	Locking Ramp	Varies by Wire Gauge	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 12.92
		32	$ 12.31
		96	$ 11.84

Description

General part information

776163 Series

Connector Header Panel Mount, Through Hole, Right Angle 35 position 0.157" (4.00mm)
