245106-02-18.00

Active

Amphenol RF

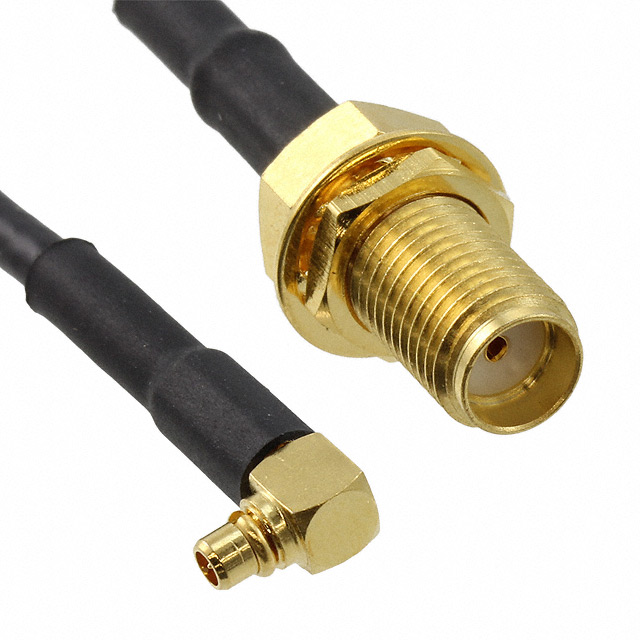

CBL ASSY SMA-MMCX JACK-PLUG 18"

Search across all available documentation for this part.

Active

Amphenol RF

CBL ASSY SMA-MMCX JACK-PLUG 18"

Technical Specifications

Parameters and characteristics for this part

Specification	245106-02-18.00

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MMCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	1 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	SMA to MMCX

Part	1st Contact Gender	Cable Impedance	Overall Impedance	1st Connector Mounting Feature	1st Connector	1st Connector Mounting Type	Cable Type	2nd Contact Gender	2nd Connector	Features	Color	Style	Length	Length	2nd Connector Mounting Type	Frequency - Max [Max]	Length [x]	Length [x]	Length
Amphenol RF 245106-01-12.00	Female	50 Ohms	50 Ohms	Bulkhead - Front Side Nut	SMA Jack	Panel Mount	RG-316	Male	MMCX Plug Right Angle	Shielded	Copper	SMA to MMCX	12 "	304.8 mm	Free Hanging (In-Line)
Amphenol RF 245106-02-18.00	Female	50 Ohms	50 Ohms	Bulkhead - Front Side Nut	SMA Jack	Panel Mount	RG-174	Male	MMCX Plug Right Angle	Shielded	Black	SMA to MMCX			Free Hanging (In-Line)	1 GHz	457.2 mm	457.2 mm
Amphenol RF 245106-02-M2.00	Female	50 Ohms	50 Ohms	Bulkhead - Front Side Nut	SMA Jack	Panel Mount	RG-174	Male	MMCX Plug Right Angle	Shielded	Black	SMA to MMCX	78.7 in	2 m	Free Hanging (In-Line)	1 GHz			6.6 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to MMCX RG-174 18.00" (457.20mm)
