Q10AP6DQP2

Obsolete

BANNER ENGINEERING

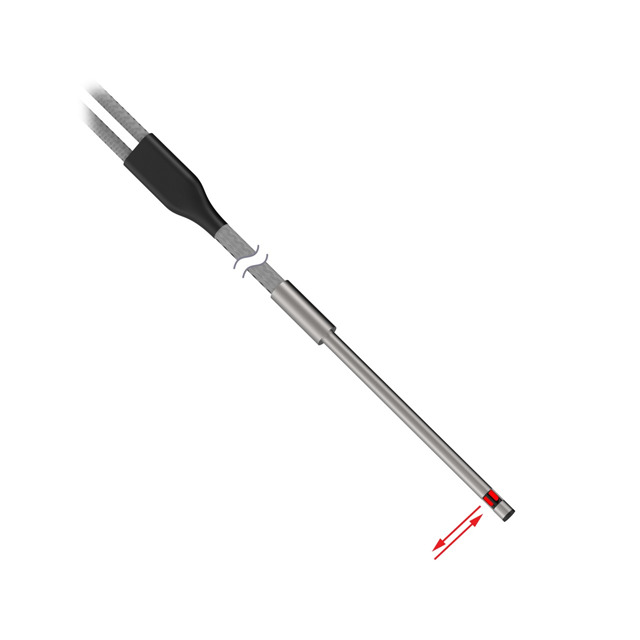

Q10AP6DQP2 THREADED PIGTAIL QD 3

Search across all available documentation for this part.

Obsolete

BANNER ENGINEERING

Q10AP6DQP2 THREADED PIGTAIL QD 3

Technical Specifications

Parameters and characteristics for this part

Part	Connection Method	Light Source	Response Time	Output Configuration	Sensing Method	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Distance	Sensing Distance	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Cable Length	Cable Length
BANNER ENGINEERING Q10AP6DQP2	Connector	Infrared	3 ms	PNP - Light-ON	Diffuse	-40 °C	70 °C	19.685 in	50 cm	30 VDC	10 VDC	IP67
BANNER ENGINEERING Q10AP6D	Cable	Infrared	3 ms	PNP - Light-ON	Diffuse	-40 °C	70 °C	19.685 in	50 cm	30 VDC	10 VDC	IP67	78.74 in	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diffuse Optical Sensor 19.685" (500mm) PNP - Light-ON
