5531-0-15-01-21-02-10-0

Active

Mill-Max Manufacturing Corp.

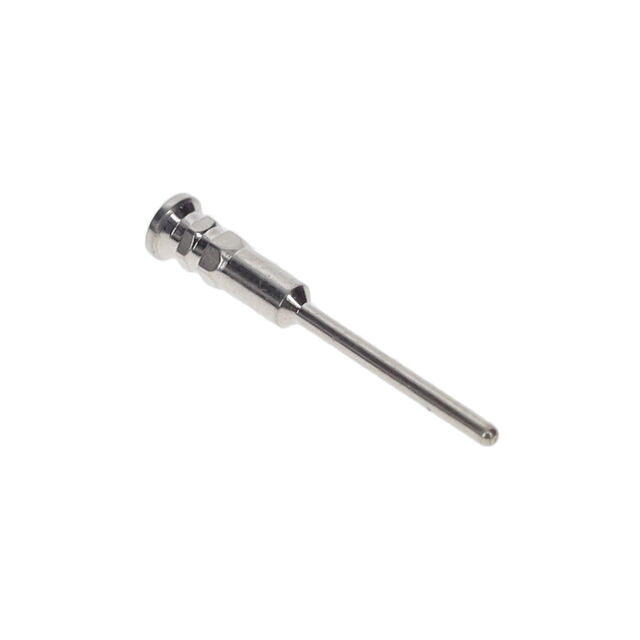

CONN RECEPT PIN .015-.021" .200"

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN RECEPT PIN .015-.021" .200"

Technical Specifications

Parameters and characteristics for this part

Specification	5531-0-15-01-21-02-10-0

Accepts Pin Diameter [Max]	0.022 in
Accepts Pin Diameter [Max]	0.56 mm
Accepts Pin Diameter [Min]	0.38 mm
Accepts Pin Diameter [Min]	0.015 "
Contact Finish	Tin-Lead
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.4 mm
Flange Diameter [diameter]	0.055 in
Length - Overall [x]	8.64 mm
Length - Overall [x]	0.34 in
Mounting Hole Diameter [diameter]	0.041 in
Mounting Hole Diameter [diameter]	1.04 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Socket Depth [z]	3.15 mm
Socket Depth [z]	0.124 "
Tail Diameter [diameter]	0.48 mm
Tail Diameter [diameter]	0.019 in
Tail Type	Standard Tail
Termination	Press-Fit, Hex

Part	Socket Depth [z]	Socket Depth [z]	Tail Diameter [diameter]	Tail Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Contact Material
Mill-Max Manufacturing Corp. 5531-0-15-01-21-27-10-0	3.15 mm	0.124 "	0.48 mm	0.019 in	0.38 mm	0.022 in	0.015 "	0.56 mm	Press-Fit Hex	-55 °C	125 °C	0.79 mm	0.031 in	Gold	1.4 mm	0.055 in	0.76 Ám	30 Áin	8.64 mm	0.34 in	0.041 in	1.04 mm	Standard Tail	Beryllium Copper
Mill-Max Manufacturing Corp. 5531-0-15-15-21-14-10-0	3.15 mm	0.124 "	0.48 mm	0.019 in	0.38 mm	0.022 in	0.015 "	0.56 mm	Press-Fit Hex	-55 °C	125 °C	0.79 mm	0.031 in	Gold	1.4 mm	0.055 in	0.25 Ám	10 Áin	8.64 mm	0.34 in	0.041 in	1.04 mm	Standard Tail	Beryllium Copper
Mill-Max Manufacturing Corp. 5531-0-15-01-21-02-10-0	3.15 mm	0.124 "	0.48 mm	0.019 in	0.38 mm	0.022 in	0.015 "	0.56 mm	Press-Fit Hex	-55 °C	125 °C	0.79 mm	0.031 in	Tin-Lead	1.4 mm	0.055 in	2.54 µm	100 µin	8.64 mm	0.34 in	0.041 in	1.04 mm	Standard Tail	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) Standard Tail Press-Fit, Hex
