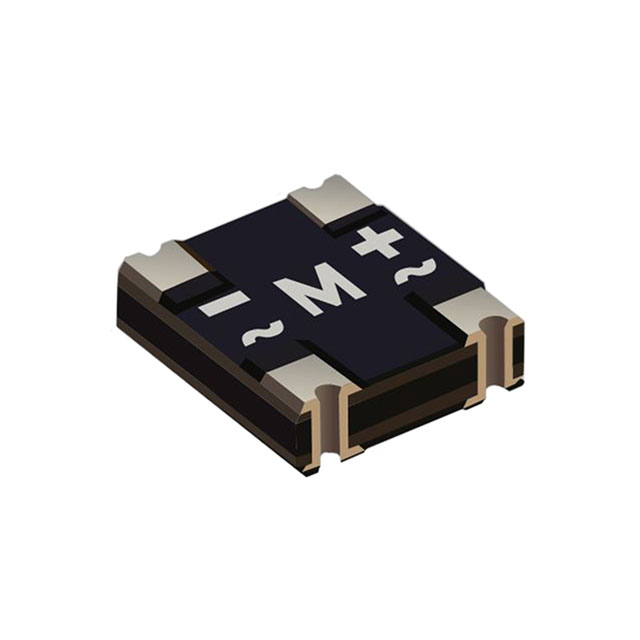

CD-MMBL110S
ActiveBourns Inc.
DIO BR VRRM 1000V 1A MMBL /TAPE & REEL - 13" REEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CD-MMBL110S
ActiveBourns Inc.
DIO BR VRRM 1000V 1A MMBL /TAPE & REEL - 13" REEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CD-MMBL110S |
|---|---|
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-LDFN Exposed Pad |
| Supplier Device Package | 4-DFN (3.5x3.8) |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Peak Reverse (Max) [Max] | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.77 | |
| 10 | $ 0.48 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.21 | |||
| 2000 | $ 0.19 | |||
| Digi-Reel® | 1 | $ 0.77 | ||
| 10 | $ 0.48 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.21 | |||
| 2000 | $ 0.19 | |||
| Tape & Reel (TR) | 5000 | $ 0.16 | ||
| 10000 | $ 0.14 | |||
| 25000 | $ 0.14 | |||
| 50000 | $ 0.14 | |||
| Newark | Each (Supplied on Full Reel) | 10000 | $ 0.17 | |
| 20000 | $ 0.16 | |||
| 30000 | $ 0.15 | |||
| 50000 | $ 0.15 | |||
Description
General part information
CD-MMBL Series
Bridge Rectifier Single Phase Standard 1 kV Surface Mount 4-DFN (3.5x3.8)
