010640WF037

Active

Essentra Components

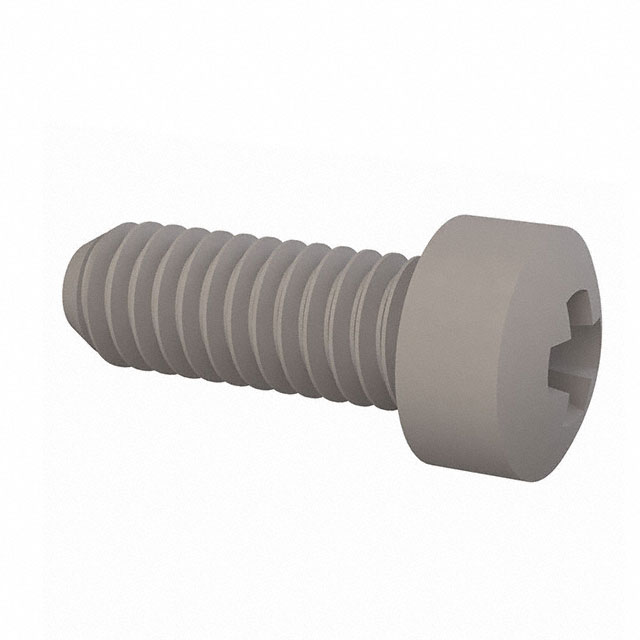

FILLISTER PHILLIPS SCREW 6-40

Search across all available documentation for this part.

Active

Essentra Components

FILLISTER PHILLIPS SCREW 6-40

Technical Specifications

Parameters and characteristics commom to parts in this series

FILLISTER PHILLIPS SCREW 6-40

Part	Material	Type	Head Height	Head Height	Length - Below Head	Length - Below Head	Length - Below Head	Drive Type	Head Diameter [diameter]	Head Diameter [diameter]	Screw Head Type	Length - Overall [x]	Length - Overall [x]
Essentra Components 010640WF037	Nylon	Machine Screw	0.243 in	6.17 mm	0.375 "	9.53 mm	0.375 "	Phillips	5.51 mm	0.217 "	Pan Head	15.7 mm	0.618 "
Essentra Components 010640WF075	Nylon	Machine Screw	0.243 in	6.17 mm	0.75 "	0.75 "	19.05 mm	Phillips	5.51 mm	0.217 "	Pan Head	25.22 mm	0.993 in
Essentra Components 010640WF025	Nylon	Machine Screw	0.243 in	6.17 mm	0.25 in	0.25 in	6.35 mm	Phillips	5.51 mm	0.217 "	Pan Head	12.52 mm	0.493 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.07

General part information

Pan Head Machine Screw Phillips Drive Nylon

Technical documentation and resources

No documents available
