AP1086KL-13

Active

Diodes Inc

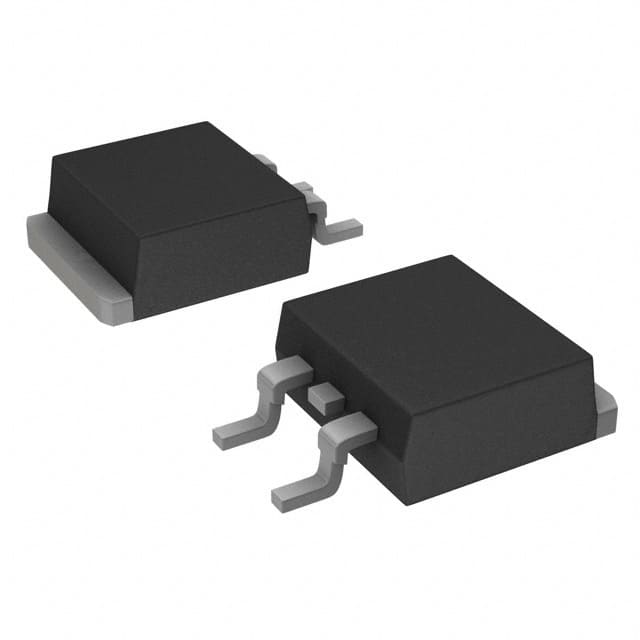

IC REG LIN POS ADJ 1.5A TO263-2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques

AP1086KL-13

Active

Diodes Inc

IC REG LIN POS ADJ 1.5A TO263-2

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP1086KL-13

Current - Output	1.5 A
Current - Quiescent (Iq)	10 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	0 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Protection Features	Over Current, Over Temperature
PSRR	60 dB
Supplier Device Package	TO-263
Voltage - Input (Max) [Max]	12 V
Voltage - Output (Max)	5 V
Voltage - Output (Min/Fixed)	1.25 V
Voltage Dropout (Max) [Max]	1.4 V

AP1086 Series

Inactive Datasheet Archive

Part	Number of Regulators	Supplier Device Package	Operating Temperature [Max]	PSRR	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Output Configuration	Current - Output	Mounting Type	Output Type	Package / Case	Protection Features	Voltage - Output (Min/Fixed)	Voltage Dropout (Max) [Max]	Voltage - Output (Max)	Output Type
Diodes Inc AP1086K18G-13	1	TO-263	125 ¯C	60 dB	12 V	10 mA	Positive	1.5 A	Surface Mount	1.81 mOhm	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Over Current Over Temperature	1.8 V
Diodes Inc AP1086D50G-13	1	TO-252-3	125 ¯C	60 dB	12 V	10 mA	Positive	1.5 A	Surface Mount	1.81 mOhm	DPAK (2 Leads + Tab) SC-63 TO-252-3	Over Current Over Temperature	5 V	1.4 V
Diodes Inc AP1086T33L-U	1	TO-220-3	125 ¯C	60 dB	12 V	10 mA	Positive	1.5 A	Through Hole	1.81 mOhm	TO-220-3	Over Current Over Temperature	3.3 V	1.4 V
Diodes Inc AP1086D25L-13	1	TO-252-3	125 ¯C	60 dB	12 V	10 mA	Positive	1.5 A	Surface Mount	1.81 mOhm	DPAK (2 Leads + Tab) SC-63 TO-252-3	Over Current Over Temperature	2.5 V	1.4 V
Diodes Inc AP1086KL-13	1	TO-263	125 ¯C	60 dB	12 V	10 mA	Positive	1.5 A	Surface Mount		D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Over Current Over Temperature	1.25 V	1.4 V	5 V	Adjustable
Diodes Inc AP1086T15L-U	1	TO-220-3	125 ¯C	60 dB	12 V	10 mA	Positive	1.5 A	Through Hole	1.81 mOhm	TO-220-3	Over Current Over Temperature	1.5 V
Diodes Inc AP1086K18L-13	1	TO-263	125 ¯C	60 dB	12 V	10 mA	Positive	1.5 A	Surface Mount	1.81 mOhm	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Over Current Over Temperature	1.8 V
Diodes Inc AP1086D33L-U	1	TO-252-3	125 ¯C	60 dB	12 V	10 mA	Positive	1.5 A	Surface Mount	1.81 mOhm	DPAK (2 Leads + Tab) SC-63 TO-252-3	Over Current Over Temperature	3.3 V	1.4 V
Diodes Inc AP1086D33G-13	1	TO-252-3	125 ¯C	60 dB	12 V	10 mA	Positive	1.5 A	Surface Mount	1.81 mOhm	DPAK (2 Leads + Tab) SC-63 TO-252-3	Over Current Over Temperature	3.3 V	1.4 V
Diodes Inc AP1086D15L-13	1	TO-252-3	125 ¯C	60 dB	12 V	10 mA	Positive	1.5 A	Surface Mount	1.81 mOhm	DPAK (2 Leads + Tab) SC-63 TO-252-3	Over Current Over Temperature	1.5 V
