ADP-SMAF-SMAF-G
ActiveTE Connectivity Linx
SMA JACK TO SMA JACK ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ADP-SMAF-SMAF-G
ActiveTE Connectivity Linx
SMA JACK TO SMA JACK ADAPTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ADP-SMAF-SMAF-G | ADP-SMAF Series |
|---|---|---|
| Adapter Series | SMA to SMA | SMA to SMB, SMA to MCX, SMA to SMA, SMA to MMCX, SMA to U.FL, BNC to SMA |
| Adapter Type | Jack to Jack | Jack to Jack, Plug to Jack |
| Body Finish | Gold | Gold, Nickel |
| Body Material | Brass | Brass, Beryllium Copper, Stainless Steel |
| Center Contact Material | Beryllium Copper | Beryllium Copper |
| Center Contact Plating | Gold | Gold |
| Center Gender | Female to Female | Female to Female |
| Conversion Type | Same Series | Between Series, Same Series |
| Convert From (Adapter End) | Female Socket, SMA Jack | Female Socket, SMA Jack, BNC Plug, Male Pin |
| Convert To (Adapter End) | SMA Jack, Female Socket | Male Pin, SMB Jack, MCX Plug, SMA Jack, Female Socket, N Plug, SMB Plug, MMCX Plug, U.FL Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | - | Threaded, Snap-On, Bayonet Lock |
| Frequency - Max [Max] | 18 GHz | 4 - 6000 GHz |
| Impedance | 50 Ohms | 50 Ohms |
| Mating Cycles | 500 | 500 |
| Mounting Feature | - | Bulkhead |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C | 125 - 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 - -55 ░C |
| Style | Straight | Straight |
ADP-SMAF Series
CONN ADAPT SMA JACK TO SMB JACK
| Part | Adapter Series | Convert From (Adapter End) | Frequency - Max [Max] | Style | Mounting Type | Adapter Type | Mating Cycles | Center Contact Plating | Convert To (Adapter End) | Body Material | Conversion Type | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Dielectric Material | Center Contact Material | Fastening Type | Impedance | Center Gender | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Linx ADP-SMAF-SMBF-G | SMA to SMB | Female Socket, SMA Jack | 4 GHz | Straight | Free Hanging (In-Line) | Jack to Jack | 500 | Gold | Male Pin, SMB Jack | Brass | Between Series | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Snap-On, Threaded | 50 Ohms | ||
TE Connectivity Linx ADP-SMAF-MCXM | SMA to MCX | Female Socket, SMA Jack | 6000 MHz | Straight | Free Hanging (In-Line) | Plug to Jack | 500 | Gold | Male Pin, MCX Plug | Beryllium Copper, Brass | Between Series | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Snap-On, Threaded | 50 Ohms | ||
TE Connectivity Linx ADP-SMAF-SMAF-G | SMA to SMA | Female Socket, SMA Jack | 18 GHz | Straight | Free Hanging (In-Line) | Jack to Jack | 500 | Gold | Female Socket, SMA Jack | Brass | Same Series | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 50 Ohms | Female to Female | ||
TE Connectivity Linx ADP-SMAF-NM | Female Socket, SMA Jack | 11 GHz | Straight | Free Hanging (In-Line) | Plug to Jack | 500 | Gold | Male Pin, N Plug | Brass | Between Series | -55 °C | 125 °C | Nickel | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 50 Ohms | ||||
TE Connectivity Linx ADP-SMAF-SMBM-G | SMA to SMB | Female Socket, SMA Jack | 4 GHz | Straight | Free Hanging (In-Line) | Plug to Jack | 500 | Gold | Female Socket, SMB Plug | Brass | Between Series | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Snap-On, Threaded | 50 Ohms | Female to Female | |
TE Connectivity Linx ADP-SMAF-SMAF-SSB-G | SMA to SMA | Female Socket, SMA Jack | 18 GHz | Straight | Jack to Jack | 500 | Gold | Female Socket, SMA Jack | Stainless Steel | Same Series | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 50 Ohms | Female to Female | Bulkhead | ||
TE Connectivity Linx ADP-SMAF-SMAF | SMA to SMA | Female Socket, SMA Jack | 12.4 GHz | Straight | Free Hanging (In-Line) | Jack to Jack | 500 | Gold | Female Socket, SMA Jack | Brass | Same Series | -65 ░C | 165 °C | Nickel | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 50 Ohms | Female to Female | ||
TE Connectivity Linx ADP-SMAF-MMXM | SMA to MMCX | Female Socket, SMA Jack | 6000 MHz | Straight | Free Hanging (In-Line) | Plug to Jack | 500 | Gold | Male Pin, MMCX Plug | Brass | Between Series | -55 °C | 125 °C | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Snap-On, Threaded | 50 Ohms | ||
TE Connectivity Linx ADP-SMAF-UFLM | SMA to U.FL | Female Socket, SMA Jack | 6000 MHz | Straight | Free Hanging (In-Line) | Plug to Jack | 500 | Gold | Female Socket, U.FL Plug | Brass | Between Series | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Snap-On, Threaded | 50 Ohms | Female to Female | |
TE Connectivity Linx ADP-SMAF-BNCM | BNC to SMA | BNC Plug, Male Pin | 4 GHz | Straight | Free Hanging (In-Line) | Plug to Jack | 500 | Gold | Female Socket, SMA Jack | Brass | Between Series | -55 °C | 125 °C | Nickel | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Bayonet Lock, Threaded | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.59 | |
Description
General part information
ADP-SMAF Series

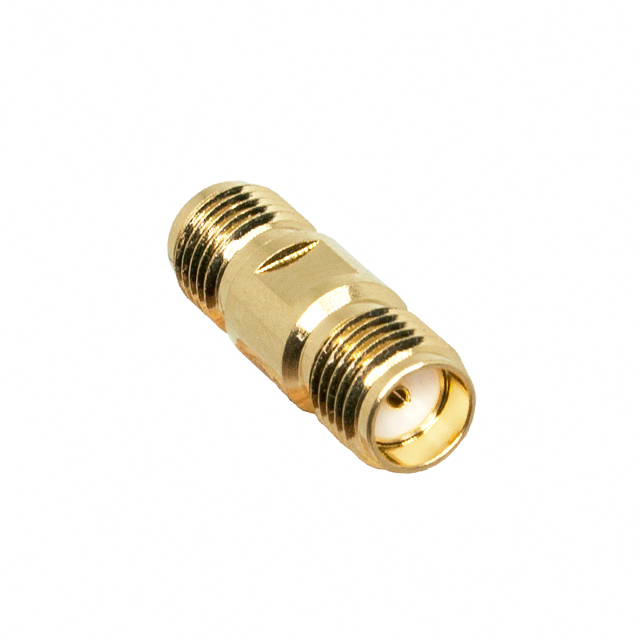

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
