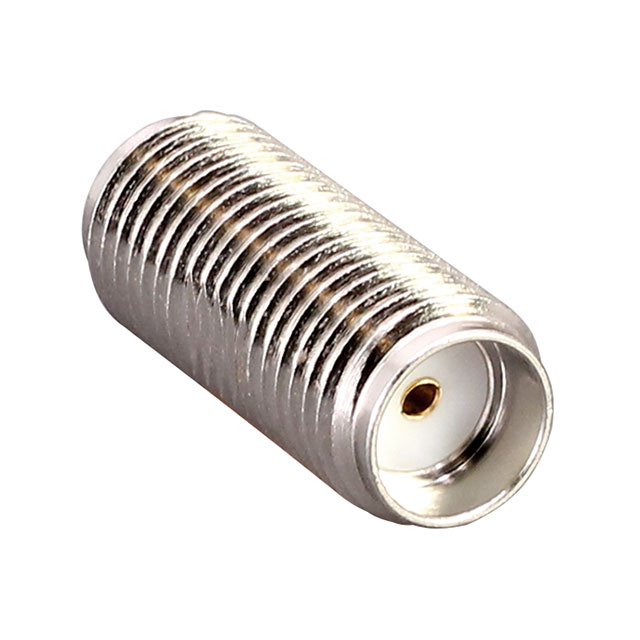

ADP-SMAF-SMAF

Active

TE Connectivity Linx

CONN ADAPT JACK-JACK SMA 50 OHM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ADP-SMAF-SMAF	ADP-SMAF Series

Adapter Series	SMA to SMA	SMA to SMB, SMA to MCX, SMA to SMA, SMA to MMCX, SMA to U.FL, BNC to SMA
Adapter Type	Jack to Jack	Jack to Jack, Plug to Jack
Body Finish	Nickel	Gold, Nickel
Body Material	Brass	Brass, Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Conversion Type	Same Series	Between Series, Same Series
Convert From (Adapter End)	Female Socket, SMA Jack	Female Socket, SMA Jack, BNC Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket	Male Pin, SMB Jack, MCX Plug, SMA Jack, Female Socket, N Plug, SMB Plug, MMCX Plug, U.FL Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Threaded, Snap-On, Bayonet Lock
Frequency - Max [Max]	12.4 GHz	4 - 6000 GHz
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Feature	-	Bulkhead
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C	125 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -55 ░C
Style	Straight	Straight

ADP-SMAF Series

CONN ADAPT SMA JACK TO SMB JACK

Part	Adapter Series	Convert From (Adapter End)	Frequency - Max [Max]	Style	Mounting Type	Adapter Type	Mating Cycles	Center Contact Plating	Convert To (Adapter End)	Body Material	Conversion Type	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Dielectric Material	Center Contact Material	Fastening Type	Impedance	Center Gender	Mounting Feature
TE Connectivity Linx ADP-SMAF-SMBF-G	SMA to SMB	Female Socket, SMA Jack	4 GHz	Straight	Free Hanging (In-Line)	Jack to Jack	500	Gold	Male Pin, SMB Jack	Brass	Between Series	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Snap-On, Threaded	50 Ohms
TE Connectivity Linx ADP-SMAF-MCXM	SMA to MCX	Female Socket, SMA Jack	6000 MHz	Straight	Free Hanging (In-Line)	Plug to Jack	500	Gold	Male Pin, MCX Plug	Beryllium Copper, Brass	Between Series	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Snap-On, Threaded	50 Ohms
TE Connectivity Linx ADP-SMAF-SMAF-G	SMA to SMA	Female Socket, SMA Jack	18 GHz	Straight	Free Hanging (In-Line)	Jack to Jack	500	Gold	Female Socket, SMA Jack	Brass	Same Series	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper		50 Ohms	Female to Female
TE Connectivity Linx ADP-SMAF-NM		Female Socket, SMA Jack	11 GHz	Straight	Free Hanging (In-Line)	Plug to Jack	500	Gold	Male Pin, N Plug	Brass	Between Series	-55 °C	125 °C	Nickel	Polytetrafluoroethylene (PTFE)	Beryllium Copper		50 Ohms
TE Connectivity Linx ADP-SMAF-SMBM-G	SMA to SMB	Female Socket, SMA Jack	4 GHz	Straight	Free Hanging (In-Line)	Plug to Jack	500	Gold	Female Socket, SMB Plug	Brass	Between Series	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Snap-On, Threaded	50 Ohms	Female to Female
TE Connectivity Linx ADP-SMAF-SMAF-SSB-G	SMA to SMA	Female Socket, SMA Jack	18 GHz	Straight		Jack to Jack	500	Gold	Female Socket, SMA Jack	Stainless Steel	Same Series	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper		50 Ohms	Female to Female	Bulkhead
TE Connectivity Linx ADP-SMAF-SMAF	SMA to SMA	Female Socket, SMA Jack	12.4 GHz	Straight	Free Hanging (In-Line)	Jack to Jack	500	Gold	Female Socket, SMA Jack	Brass	Same Series	-65 ░C	165 °C	Nickel	Polytetrafluoroethylene (PTFE)	Beryllium Copper		50 Ohms	Female to Female
TE Connectivity Linx ADP-SMAF-MMXM	SMA to MMCX	Female Socket, SMA Jack	6000 MHz	Straight	Free Hanging (In-Line)	Plug to Jack	500	Gold	Male Pin, MMCX Plug	Brass	Between Series	-55 °C	125 °C	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Snap-On, Threaded	50 Ohms
TE Connectivity Linx ADP-SMAF-UFLM	SMA to U.FL	Female Socket, SMA Jack	6000 MHz	Straight	Free Hanging (In-Line)	Plug to Jack	500	Gold	Female Socket, U.FL Plug	Brass	Between Series	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Snap-On, Threaded	50 Ohms	Female to Female
TE Connectivity Linx ADP-SMAF-BNCM	BNC to SMA	BNC Plug, Male Pin	4 GHz	Straight	Free Hanging (In-Line)	Plug to Jack	500	Gold	Female Socket, SMA Jack	Brass	Between Series	-55 °C	125 °C	Nickel	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Bayonet Lock, Threaded	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 4.85
		250	$ 4.61
		1000	$ 4.27
		2000	$ 3.96

Description

General part information

ADP-SMAF Series

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
