150218-6002-RB

Active

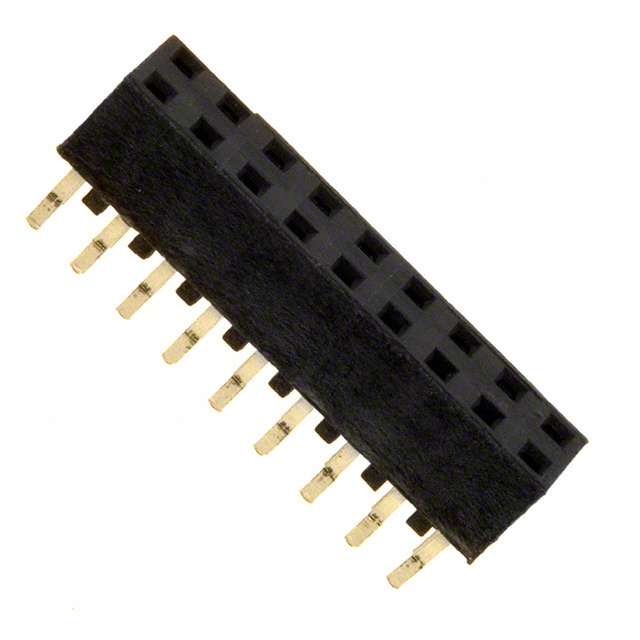

CONN RCPT 18POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150218-6002-RB

Active

CONN RCPT 18POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	420	$ 2.73

Description

General part information

150218 Series

18 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150218-6002-RB	150218 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.54 mm	2.54 mm
Contact Length - Post	0.1 in	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	-	Board Guide, Pick and Place
Insulation Color	Black	Black
Insulation Height	0.177 in	0.177 - 0.183 in
Insulation Height	4.5 mm	4.5 - 4.65 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Positions	18	18
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150218 Series

CONN RCPT 18POS 0.079 GOLD SMD

Part	Mounting Type	Contact Finish - Post	Contact Finish - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Material	Fastening Type	Connector Type	Contact Type	Voltage Rating	Features	Insulation Color	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Length - Post	Contact Length - Post
3M 150218-2020-RB	Surface Mount	Tin	Gold	All	4.65 mm	0.183 in	UL94 V-0	Thermoplastic	Push-Pull	Receptacle	Female Socket	500 V	Board Guide	Black	Square	0.079 in	2 mm	18	30 Áin	0.76 Ám	2	200 µin	5.08 µm	Copper Alloy	Solder	0.079 in	2 mm	105 ░C	-55 °C	Board to Board, Cable
3M 150218-6002-RB	Through Hole	Tin	Gold	All	4.5 mm	0.177 in	UL94 V-0	Thermoplastic	Push-Pull	Receptacle	Female Socket	500 V		Black	Square	0.079 in	2 mm	18	30 Áin	0.76 Ám	2	200 µin	5.08 µm	Copper Alloy	Solder	0.079 in	2 mm	105 ░C	-55 °C	Board to Board, Cable	2.54 mm	0.1 in
3M 150218-2000-RB	Surface Mount	Tin	Gold	All	4.65 mm	0.183 in	UL94 V-0	Thermoplastic	Push-Pull	Receptacle	Female Socket	500 V		Black	Square	0.079 in	2 mm	18	30 Áin	0.76 Ám	2	200 µin	5.08 µm	Copper Alloy	Solder	0.079 in	2 mm	105 ░C	-55 °C	Board to Board, Cable
3M 150218-2020-RB-WD	Surface Mount	Tin	Gold	All	4.65 mm	0.183 in	UL94 V-0	Thermoplastic	Push-Pull	Receptacle	Female Socket	500 V	Board Guide, Pick and Place	Black	Square	0.079 in	2 mm	18	30 Áin	0.76 Ám	2	200 µin	5.08 µm	Copper Alloy	Solder	0.079 in	2 mm	105 ░C	-55 °C	Board to Board, Cable
