PTWM-24-78

Active

Cinch Connectivity Solutions Trompeter

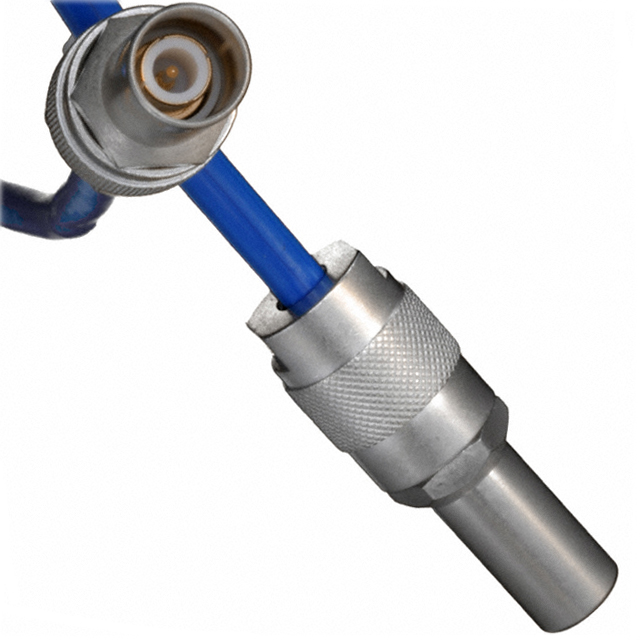

CBL ASSY TWINAX PLUG TO PLUG 24"

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CBL ASSY TWINAX PLUG TO PLUG 24"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 285.08

General part information

Cable Assembly Coaxial Twinax to Twinax Twinaxial 24.00" (609.60mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	PTWM-24-78	PTW Series

1st Connector	Twinax Subminiature Patch Plug	TRB Plug, Twinax Patch Plug, Twinax Subminiature Patch Plug
1st Contact Gender	Male	Male
2nd Connector	Twinax Subminiature Patch Plug	TRB Plug, Twinax Subminiature Patch Plug, Twinax Patch Plug
2nd Contact Gender	Male	Male
Cable Type	Twinaxial	Twinaxial
Color	Blue	Blue
Frequency - Max	-	500 MHz
Length	24 "	12 - 36 in
Length	609.6 mm	91.44 - 609.6 cm
Length	-	457.2 mm
Length	-	457.2 mm
Overall Impedance	78 Ohms	78 - 124 Ohms
Style	Twinax to Twinax	TRB to TRB, Twinax to Twinax

CBL ASSY TRB PLUG TO PLUG 36"

Part	Length	Length	Cable Type	2nd Contact Gender	1st Contact Gender	2nd Connector	Style	1st Connector	Overall Impedance	Length [x]	Length [x]	Color
Cinch Connectivity Solutions Trompeter PTWY-36-78	91.44 cm	36 in	Twinaxial	Male	Male	TRB Plug	TRB to TRB	TRB Plug	78 Ohms
Cinch Connectivity Solutions Trompeter PTWX-24-124	609.6 mm	24 "	Twinaxial	Male	Male	TRB Plug	Twinax to Twinax	Twinax Patch Plug	124 Ohms
Cinch Connectivity Solutions Trompeter PTWX-36-124	91.44 cm	36 in	Twinaxial	Male	Male	TRB Plug	Twinax to Twinax	Twinax Patch Plug	124 Ohms
Cinch Connectivity Solutions Trompeter PTWY-24-78	609.6 mm	24 "	Twinaxial	Male	Male	TRB Plug	TRB to TRB	TRB Plug	78 Ohms
Cinch Connectivity Solutions Trompeter PTWY-36-124	91.44 cm	36 in	Twinaxial	Male	Male	TRB Plug	TRB to TRB	TRB Plug	124 Ohms
Cinch Connectivity Solutions Trompeter PTWY-18-124			Twinaxial	Male	Male	TRB Plug	TRB to TRB	TRB Plug	124 Ohms	457.2 mm	457.2 mm
Cinch Connectivity Solutions Trompeter PTWX-24-78	609.6 mm	24 "	Twinaxial	Male	Male	TRB Plug	Twinax to Twinax	Twinax Patch Plug	78 Ohms
Cinch Connectivity Solutions Trompeter PTWY-24-124	609.6 mm	24 "	Twinaxial	Male	Male	TRB Plug	TRB to TRB	TRB Plug	124 Ohms
Cinch Connectivity Solutions Trompeter PTWM-24-78	609.6 mm	24 "	Twinaxial	Male	Male	Twinax Subminiature Patch Plug	Twinax to Twinax	Twinax Subminiature Patch Plug	78 Ohms			Blue
Cinch Connectivity Solutions Trompeter PTWY-18-78			Twinaxial	Male	Male	TRB Plug	TRB to TRB	TRB Plug	78 Ohms	457.2 mm	457.2 mm
