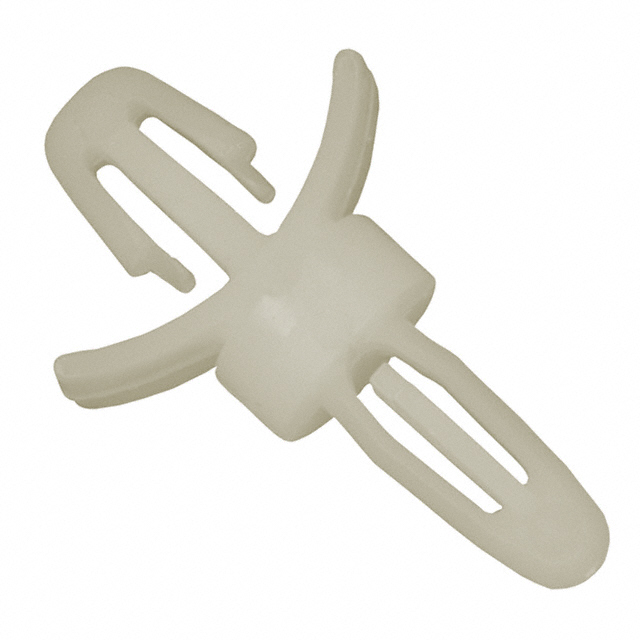

LCBS-3-01
ActiveEssentra Access Solutions
PCB SPACER SUPPORT, NYLON 6.6, 4.8MM
Deep-Dive with AI
Search across all available documentation for this part.
LCBS-3-01
ActiveEssentra Access Solutions
PCB SPACER SUPPORT, NYLON 6.6, 4.8MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCBS-3-01 |
|---|---|
| Between Board Height | 0.188 " |
| Between Board Height | 4.78 mm |
| Between Board Height | 0.1875 " |
| Features | Winged |
| Holding Type | Snap Lock |
| Length - Overall [x] | 0.921 " |
| Length - Overall [x] | 23.4 mm |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.187 in |
| Mounting Hole Diameter [diameter] | 4.75 mm |
| Mounting Hole Diameter [diameter] | 3 in |
| Mounting Panel Thickness [Max] | 1.98 mm |
| Mounting Panel Thickness [Max] | 0.078 " |
| Mounting Panel Thickness [Min] | 0.79 mm |
| Mounting Panel Thickness [Min] | 0.031 in |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LCBS-3 Series
Board Support Snap Lock / Snap Lock Nylon 0.188" (4.78mm) 3/16"
