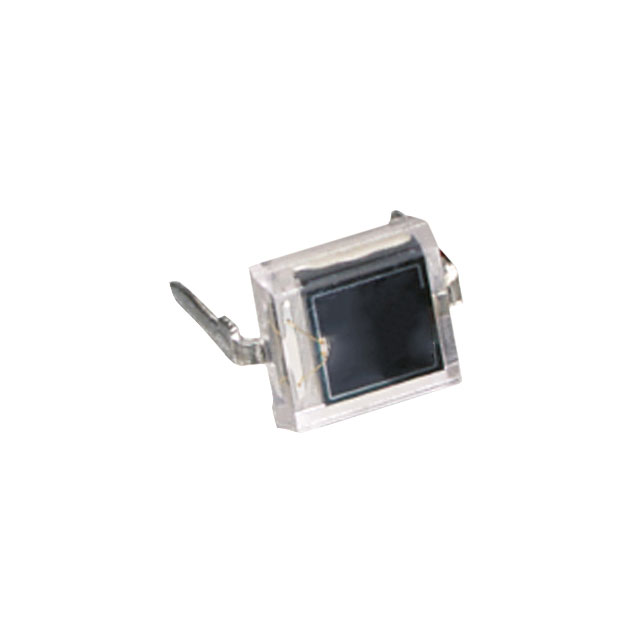

VTP8551H
ObsoleteExcelitas Technologies
SENSOR PHOTODIODE 925NM 2DIP MOD
VTP8551H
ObsoleteExcelitas Technologies
SENSOR PHOTODIODE 925NM 2DIP MOD
Description
General part information
VTP8551 Series
Photodiode 925nm 100° 2-DIP Module
Technical Specifications
Parameters and characteristics for this part
| Specification | VTP8551H |
|---|---|
| Active Area | 7.45 mm² |
| Current - Dark (Typ) | 30 nA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2-DIP Module |
| Responsivity | 0.55 A/W |
| Spectral Range (Maximum) | 1150 nm |
| Spectral Range (Minimum) | 400 nm |
| Viewing Angle | 100 ° |
| Voltage - DC Reverse (Vr) (Max) | 140 V |
| Wavelength | 925 nm |
