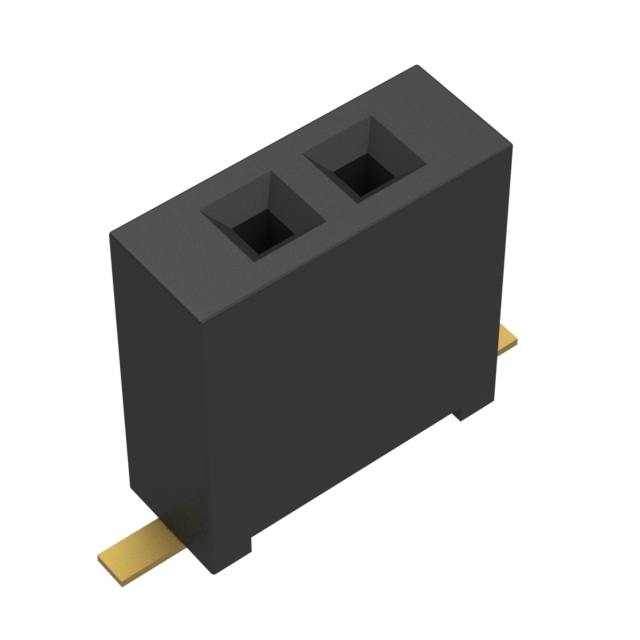

Specification	MLE-101-01-G-DV

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 µin
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Per Contact)	2.9 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.13 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Row Spacing - Mating	0.039 in
Style	Board
Termination	Solder
Voltage Rating	310 VAC

MLE-101 Series

Part	Contact Finish - Mating	Current Rating (Per Contact)	Termination	Number of Positions Loaded	Fastening Type	Insulation Material	Number of Rows	Insulation Height	Style	Row Spacing - Mating	Contact Shape	Contact Finish Thickness - Mating	Insulation Color	Connector Type	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Voltage Rating	Number of Positions	Contact Material
Samtec Inc. MLE-101-01-G-DV	Gold	2.9 A	Solder	All	Push-Pull	Liquid Crystal Polymer (LCP)	2	0.13 in	Board	0.039 in	Square	10 µin	Black	Receptacle	Female Socket	125 °C	-55 °C	Surface Mount	310 VAC	2	Beryllium Copper
