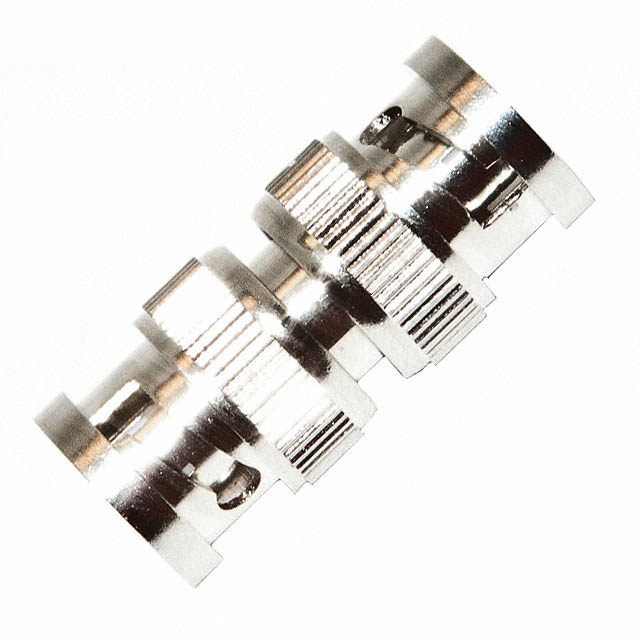

BU-P3533

Active

Mueller Electric Co

RF ADAPTER, BNC PLUG-PLUG, 50 OHM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Mueller Electric Co

RF ADAPTER, BNC PLUG-PLUG, 50 OHM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P3533

Adapter Series	BNC to BNC
Adapter Type	Plug to Plug
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	BNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-50 °C
Style	Straight

Part	Adapter Series	Center Contact Plating	Conversion Type	Mounting Type	Style	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Body Finish	Center Gender	Convert To (Adapter End)	Fastening Type	Center Contact Material	Impedance	Adapter Type	Dielectric Material
Mueller Electric Co BU-P3533	BNC to BNC	Gold	Same Series	Free Hanging (In-Line)	Straight	BNC Plug Male Pin	-50 °C	170 °C	Brass	Nickel	Male to Male	BNC Plug Male Pin	Bayonet Lock	Beryllium Copper	50 Ohms	Plug to Plug	Polytetrafluoroethylene (PTFE)
Mueller Electric Co BU-P3534	BNC to BNC	Gold	Same Series	Free Hanging (In-Line) Right Angle	Right Angle	BNC Plug Male Pin	-50 °C	170 °C	Brass	Nickel		BNC Jack Female Socket	Bayonet Lock	Beryllium Copper	50 Ohms	Plug to Jack	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To BNC Plug, Male Pin 50 Ohms
