General part information

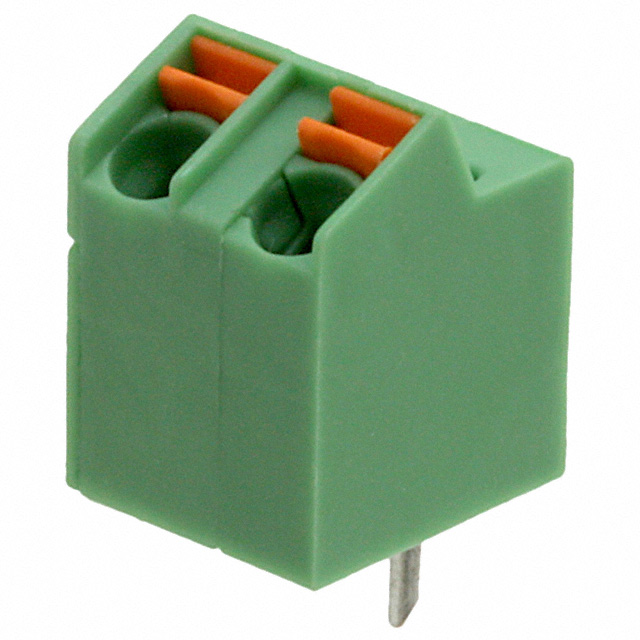

Fixed Terminal Blocks SPTA 1/2-5.0 2P 5.0MM
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1752214 | SPTA Series |
|---|---|---|
| Color | Green | Green |
| Current | 10 A | 10 A |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mating Orientation | 155 ° | 135 - 155 ° |
| Mating Orientation | 25 ° | 25 - 45 ° |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Pitch [x] | 5 mm | 3.81 - 5 mm |
| Pitch [x] | 0.197 in | 0.15 - 0.197 in |
| Positions Per Level | 2 | 2 - 9 |
| Voltage | 300 V | 300 V |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 16 AWG | 16 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp | Screwless - Spring Cage, Tension Clamp |
Fixed Terminal Blocks SPTA 1/2-5.0 2P 5.0MM
| Part | Mounting Type | Wire Termination | Voltage | Number of Levels | Current | Pitch [x] | Pitch [x] | Wire Gauge [Max] | Wire Gauge [Min] | Positions Per Level | Housing Material | Color | Mating Orientation | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1751532 | Through Hole | Screwless - Spring Cage, Tension Clamp | 300 V | 1 | 10 A | 0.15 in | 3.81 mm | 26 AWG | 16 AWG | 9 | Polyamide (PA), Nylon | Green | 135 ° | 45 ° |
Phoenix Contact 1752214 | Through Hole | Screwless - Spring Cage, Tension Clamp | 300 V | 1 | 10 A | 0.197 in | 5 mm | 26 AWG | 16 AWG | 2 | Polyamide (PA), Nylon | Green | 155 ° | 25 ° |
