Specification	1-282832-7

Color	Green
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.138 in
Current - UL	12 A
Features	Side Stacking
Header Orientation	Vertical
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.079 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	16
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in
Positions Per Level	16
Termination Style	Solder
Type	Male Pins, Unshrouded, Header
Voltage - UL	300 V

282832 Series

Part	Features	Voltage - UL	Termination Style	Contact Mating Finish	Mounting Type	Color	Header Orientation	Type	Number of Positions	Current - UL	Number of Levels	Positions Per Level	Operating Temperature (Min)	Operating Temperature (Max)	Pitch	Housing Material	Material Flammability Rating	Insulation Height	Contact Material	Contact Tail Length

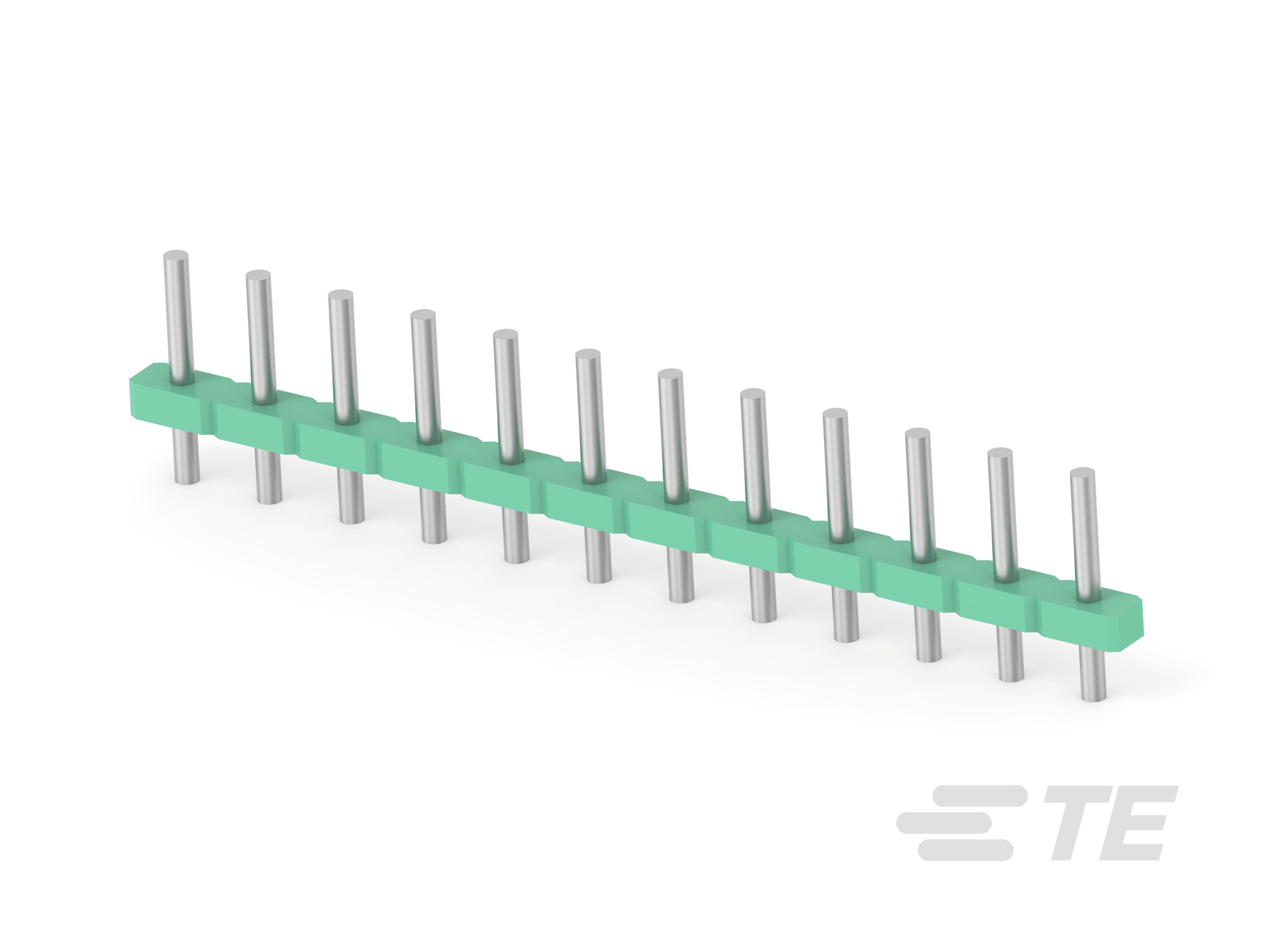

TE Connectivity AMP Connectors 1-282832-2	Side Stacking	300 V	Solder	Tin	Through Hole	Green	Vertical	Header Male Pins Unshrouded	12	12 A	1	12	-40 °C	110 °C	0.197 in	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.079 in	Brass	0.138 in
TE Connectivity AMP Connectors 2-282832-3	Side Stacking	300 V	Solder	Tin	Through Hole	Green	Vertical	Header Male Pins Unshrouded	22	12 A	1	22	-40 °C	110 °C	0.197 in	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.079 in	Brass	0.138 in

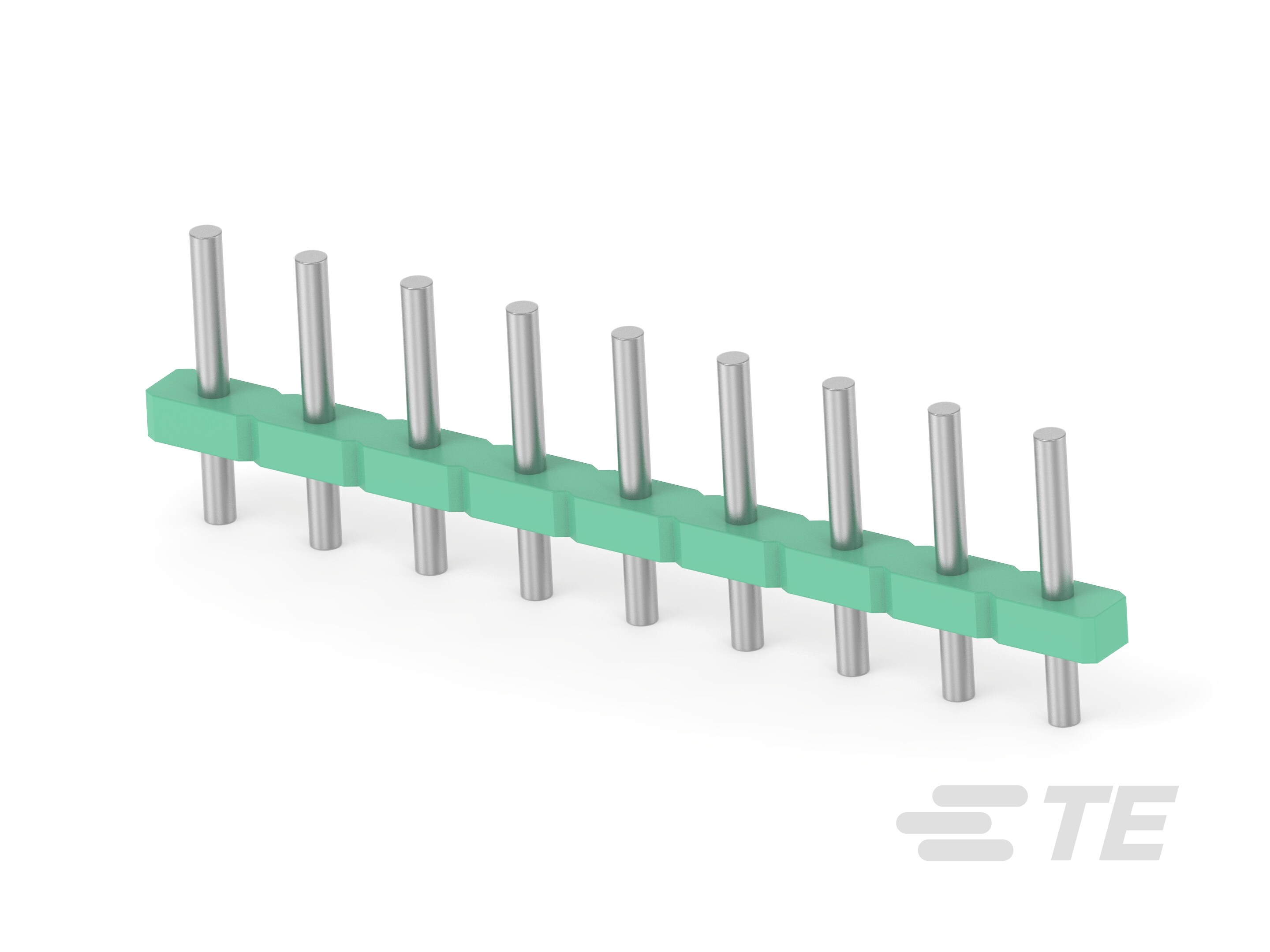

TE Connectivity AMP Connectors 282832-9	Side Stacking	300 V	Solder	Tin	Through Hole	Green	Vertical	Header Male Pins Unshrouded	9	12 A	1	9	-40 °C	110 °C	0.197 in	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.079 in	Brass	0.138 in
TE Connectivity AMP Connectors 2-282832-2	Side Stacking	300 V	Solder	Tin	Through Hole	Green	Vertical	Header Male Pins Unshrouded	21	12 A	1	21	-40 °C	110 °C	0.197 in	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.079 in	Brass	0.138 in
TE Connectivity AMP Connectors 1-282832-4	Side Stacking	300 V	Solder	Tin	Through Hole	Green	Vertical	Header Male Pins Unshrouded	13	12 A	1	13	-40 °C	110 °C	0.197 in	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.079 in	Brass	0.138 in
TE Connectivity AMP Connectors 282832-6	Side Stacking	300 V	Solder	Tin	Through Hole	Green	Vertical	Header Male Pins Unshrouded	6	12 A	1	6	-40 °C	110 °C	0.197 in	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.079 in	Brass	0.138 in
TE Connectivity AMP Connectors 2-282832-5	Side Stacking	300 V	Solder	Tin	Through Hole	Green	Vertical	Header Male Pins Unshrouded	24 pos	12 A	1	24	-40 °C	110 °C	0.197 in	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.079 in	Brass	0.138 in
TE Connectivity AMP Connectors 2-282832-6	Side Stacking	300 V	Solder	Tin	Through Hole	Green	Vertical	Header Male Pins Unshrouded	25	12 A	1	25	-40 °C	110 °C	0.197 in	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.079 in	Brass	0.138 in
TE Connectivity AMP Connectors 1-282832-7	Side Stacking	300 V	Solder	Tin	Through Hole	Green	Vertical	Header Male Pins Unshrouded	16	12 A	1	16	-40 °C	110 °C	0.197 in	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.079 in	Brass	0.138 in

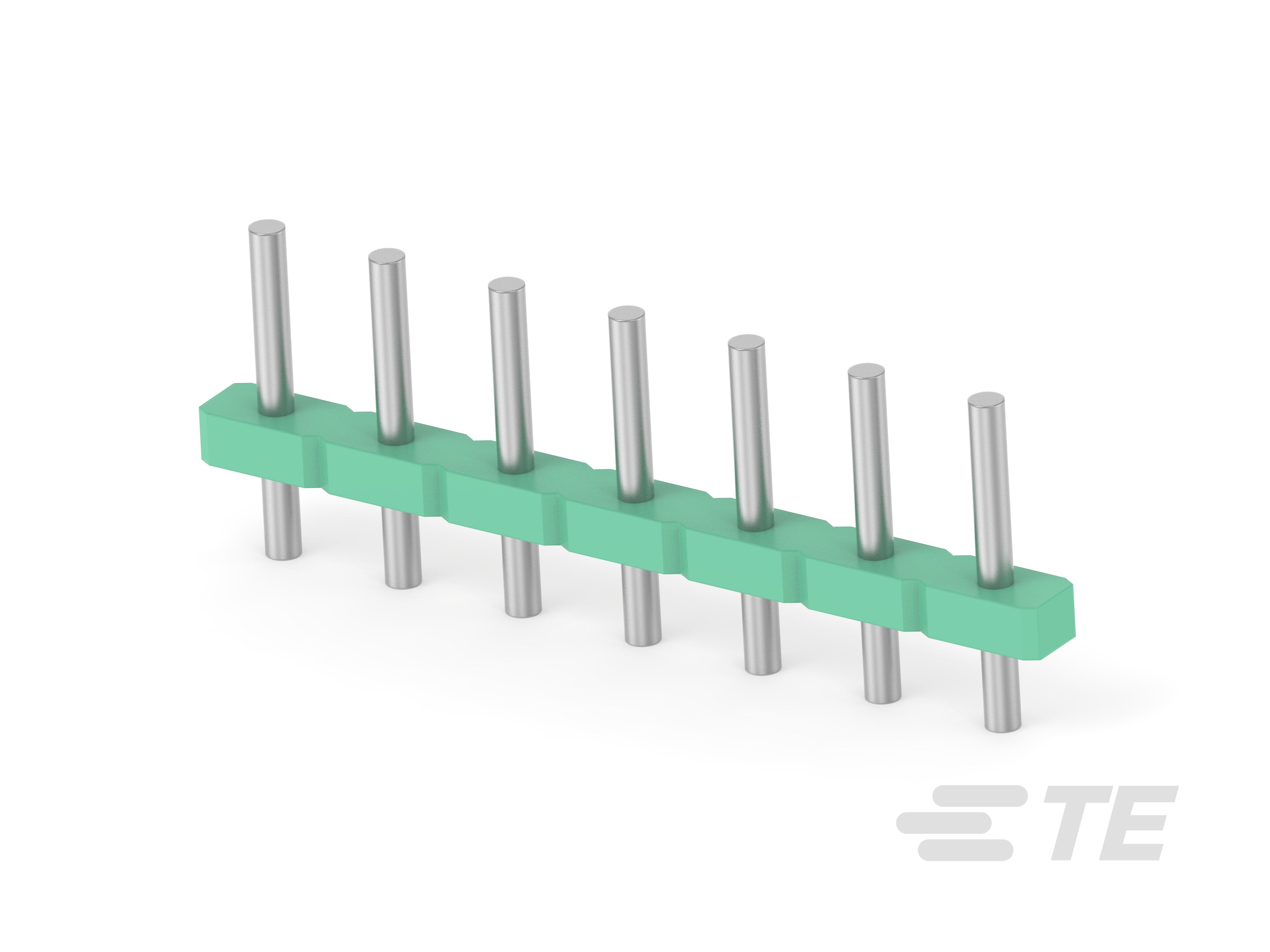

TE Connectivity AMP Connectors 282832-7	Side Stacking	300 V	Solder	Tin	Through Hole	Green	Vertical	Header Male Pins Unshrouded	7	12 A	1	7	-40 °C	110 °C	0.197 in	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.079 in	Brass	0.138 in
