848-AG10D

Obsolete

TE Connectivity AMP Connectors

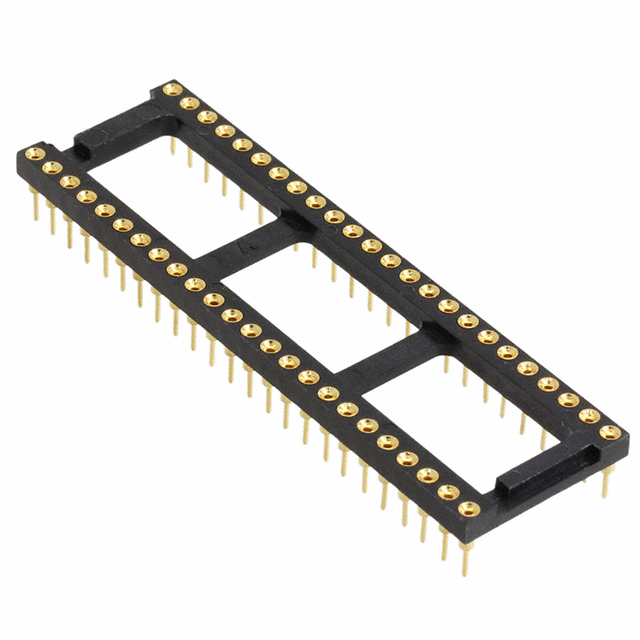

CONN IC DIP SOCKET 48POS GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN IC DIP SOCKET 48POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	848-AG10D

Contact Finish - Mating	Gold
Contact Material - Mating	Copper Alloy
Contact Material - Post [custom]	Copper Alloy
Contact Resistance	10 mOhm
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	48
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	DIP
Type	0.6 in
Type	15.24 mm

CONN IC DIP SOCKET 48POS GOLD

Part	Mounting Type	Contact Resistance	Contact Finish - Mating	Contact Material - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Material Flammability Rating	Housing Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Positions or Pins (Grid)	Type	Type	Type	Contact Material - Post [custom]	Features	Pitch - Post	Pitch - Post	Termination Post Length	Termination Post Length
TE Connectivity AMP Connectors 848-AG10D	Through Hole	10 mOhm	Gold	Copper Alloy	105 ░C	-55 °C	Solder	UL94 V-0	Polyester	0.1 in	2.54 mm	3 A	48	DIP	0.6 in	15.24 mm	Copper Alloy	Open Frame	2.54 mm	0.1 in	3.18 mm	0.125 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48 (2 x 24) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
