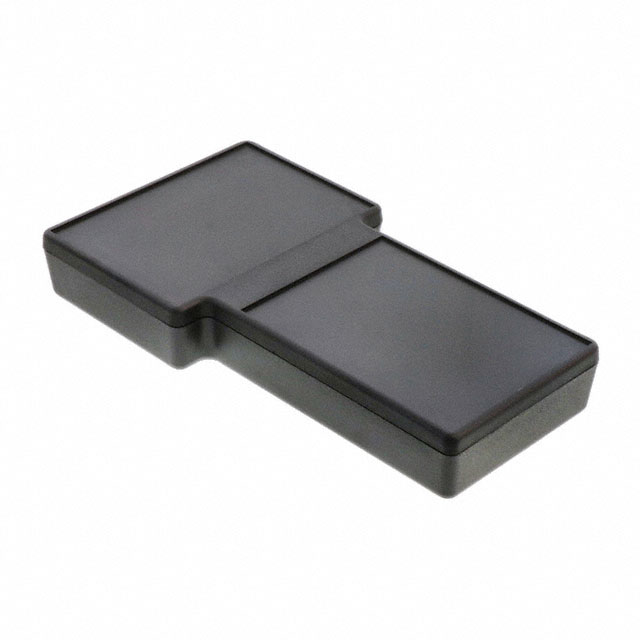

1592ETSDBK

Active

Hammond Manufacturing

BOX PLASTIC BLK 9.23"L X 5.12"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX PLASTIC BLK 9.23"L X 5.12"W

Technical Specifications

Parameters and characteristics for this part

Specification	1592ETSDBK

Area (L x W)	305 cm²
Area (L x W)	47.3 in²
Color	Black
Container Type	Box
Design	Hand Held, Cover Included, T-Shaped
Features	PCB Supports, Flame Retardant
Height [z]	35 mm
Height [z]	1.378 in
Material	Plastic
Material Flammability Rating	UL94 V-0
Size / Dimension [x]	9.232 in
Size / Dimension [x]	234.49 mm
Size / Dimension [y]	130 mm
Size / Dimension [y]	5.118 "

Part	Accessory Type	For Use With/Related Products	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Design	Material	Height [z]	Height [z]	Material Flammability Rating	Container Type	Color	Area (L x W)	Area (L x W)	Features
Hammond Manufacturing 1592ETV	Hook and Loop Mounting Tab	1592 "T" Case Series
Hammond Manufacturing 1592ETCDBK			9.232 in	130 mm	5.118 "	234.49 mm	Cover Included Hand Held T-Shaped	ABS	35 mm	1.378 in	UL94 V-0	Box	Black	305 cm²	47.3 in²
Hammond Manufacturing 1592ETCDGY			9.232 in	130 mm	5.118 "	234.49 mm	Cover Included Hand Held T-Shaped	Plastic	35 mm	1.378 in	UL94 V-0	Box	Gray	305 cm²	47.3 in²
Hammond Manufacturing 1592ETG	Gasket Seal	1592 "T" Case Series
Hammond Manufacturing 1592ETRF	Feet Leveling	1592 "T" Case Series
Hammond Manufacturing 1592ETSDBK			9.232 in	130 mm	5.118 "	234.49 mm	Cover Included Hand Held T-Shaped	Plastic	35 mm	1.378 in	UL94 V-0	Box	Black	305 cm²	47.3 in²	Flame Retardant PCB Supports
Hammond Manufacturing 1592ETSDGY			9.232 in	130 mm	5.118 "	234.49 mm	Cover Included Hand Held T-Shaped	Plastic	35 mm	1.378 in	UL94 V-0	Box	Gray	305 cm²	47.3 in²	Flame Retardant PCB Supports

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic Black Hand Held, T-Shaped, Cover Included 9.232" L x 5.118" W (234.49mm x 130.00mm) X 1.378" (35.00mm)
