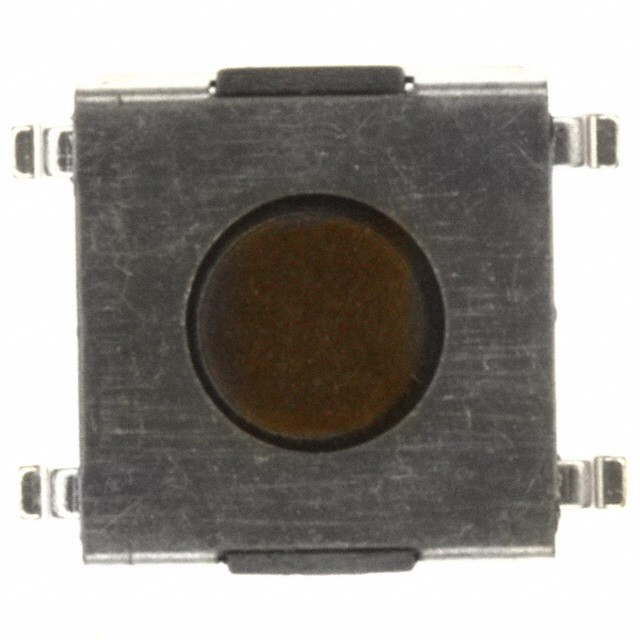

TL3303F100QG

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TL3303F100QG

Actuator Height off PCB, Vertical [z]	3.1 mm
Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Force	100 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6.2 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

Part	Switch Travel	Actuator Orientation	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Operating Force	Switch Function	Actuator Type	Actuator Material	Termination Style	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Illumination	Circuit	Outline [y]	Outline [x]
E-Switch TL3303F100QG	0.25 mm	Top Actuated	Surface Mount	-20 C	70 °C	100000 Cycles	100 gf	Off-Mom	Standard	Polyphenylene Sulfide (PPS)	Gull Wing	0.05 A 12 VDC	3.1 mm	Non-Illuminated	SPST-NO	6 mm	6.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.81
	Digi-Reel®	1	$ 0.81
	Tape & Reel (TR)	7500	$ 0.43

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
