HG2-DC24V-F

Obsolete

Panasonic Electric Works

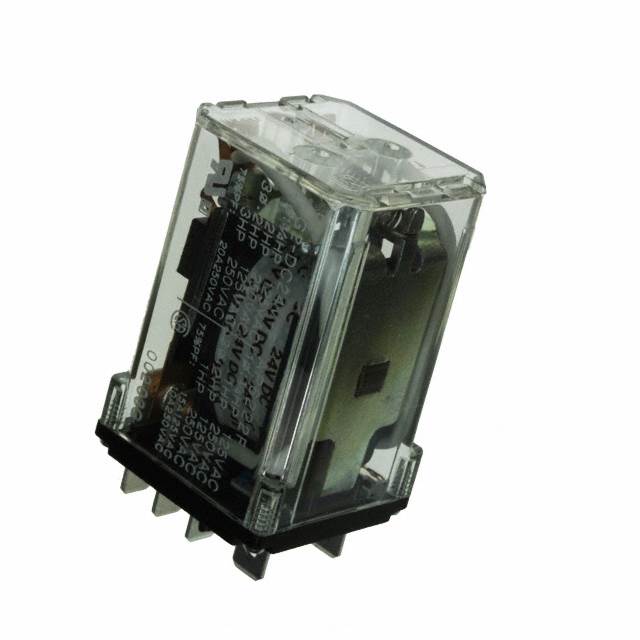

RELAY GEN PURPOSE DPDT 20A 24V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 20A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Relay Type	Operate Time	Contact Rating (Current)	Mounting Type	Release Time	Must Operate Voltage	Contact Form	Coil Type	Must Release Voltage	Approval Agency	Coil Current	Coil Voltage	Contact Material	Switching Voltage	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]
Panasonic Electric Works HG2-DC24V	Plug In Quick Connect - 0.250" (6.3mm)	General Purpose	15 ms	20 A	Socketable	15 ms	19.2 VDC	DPDT (2 Form C)	Non Latching	2.4 VDC	CSA UR	57.6 mA	24 VDC	Silver Alloy	250 VAC	416 Ohms	40 °C	-50 °C
Panasonic Electric Works HG2-DC48V	Plug In Quick Connect - 0.250" (6.3mm)	General Purpose	15 ms	20 A	Socketable	15 ms	38.4 VDC	DPDT (2 Form C)	Non Latching	4.8 VDC	CSA UR		48 VDC	Silver Alloy	250 VAC	1.59 kOhms	40 °C	-50 °C
Panasonic Electric Works HG2-DC24V-F	Plug In Quick Connect - 0.250" (6.3mm)	General Purpose	30 ms	20 A	Socketable	30 ms	19.2 VDC	DPDT (2 Form C)	Non Latching	2.4 VDC	CSA UR	57.6 mA	24 VDC	Silver Tin Oxide (AgSnO)	250 VAC	416 Ohms	40 °C	-50 °C
Panasonic Electric Works HG2-DC110V	Plug In Quick Connect - 0.250" (6.3mm)	General Purpose	15 ms	20 A	Socketable	15 ms	88 VDC	DPDT (2 Form C)	Non Latching	11 VDC	CSA UR	14.4 mA	110 VDC	Silver Alloy	250 VAC	7.65 kOhms	40 °C	-50 °C
