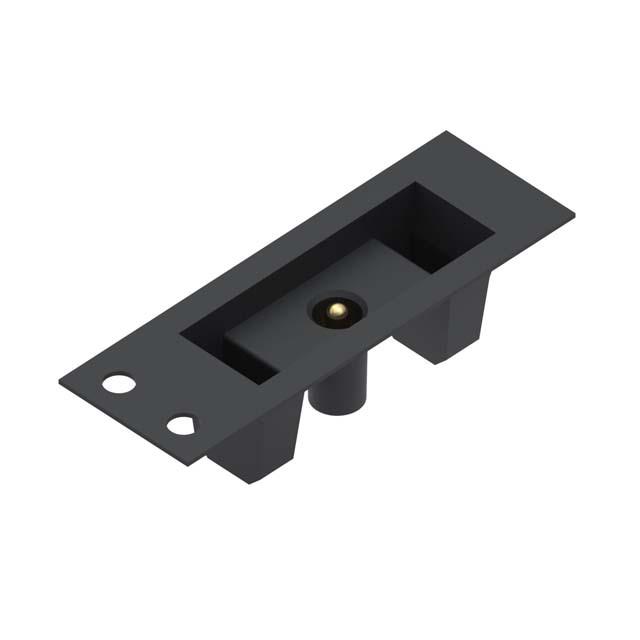

0910-2-57-20-75-14-11-0 - 0910-2-57-20-75-14-11-0

0910-2-57-20-75-14-11-0

Active
Mill-Max Manufacturing Corp.

CONTACT SPRING LOADED SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

0910-2-57-20-75-14-11-0 - 0910-2-57-20-75-14-11-0

0910-2-57-20-75-14-11-0

Active
Mill-Max Manufacturing Corp.

CONTACT SPRING LOADED SMD GOLD

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification0910-2-57-20-75-14-11-0
Contact FinishGold
Contact Finish Thickness0.51 µm
Contact Finish Thickness20 µin
Contact MaterialBrass Alloy
Contact TypeSleeve & Plunger (Pogo Pins)
Current Rating (Amps)5.2 A
Mating Cycles1000000
Maximum Working Height [Max]5 mm
Maximum Working Height [Max]0.197 in
Minimum Working Height [Min]3.6 mm
Minimum Working Height [Min]0.142 in
Mounting TypeSurface Mount
Operating Force - Initial10 gf
Operating Force - Mid Compression60 gf
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pad Layout Dimension [custom]1.83 mm
Pad Layout Dimension [custom]0.072 in
Plunger Size [diameter]0.042 in
Plunger Size [diameter]1.07 mm
Recommended Working Height [z]4.3 mm
Recommended Working Height [z]0.169 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.24
10$ 1.06
25$ 0.99
50$ 0.94
100$ 0.90
250$ 0.84
500$ 0.80
Digi-Reel® 1$ 1.24
10$ 1.06
25$ 0.99
50$ 0.94
100$ 0.90
250$ 0.84
500$ 0.80
Tape & Reel (TR) 1100$ 0.76
2200$ 0.72
3300$ 0.70
5500$ 0.68
7700$ 0.66
11000$ 0.64

Description

General part information

0910-2 Series

Contact Spring Surface Mount

Documents

Technical documentation and resources

No documents available
