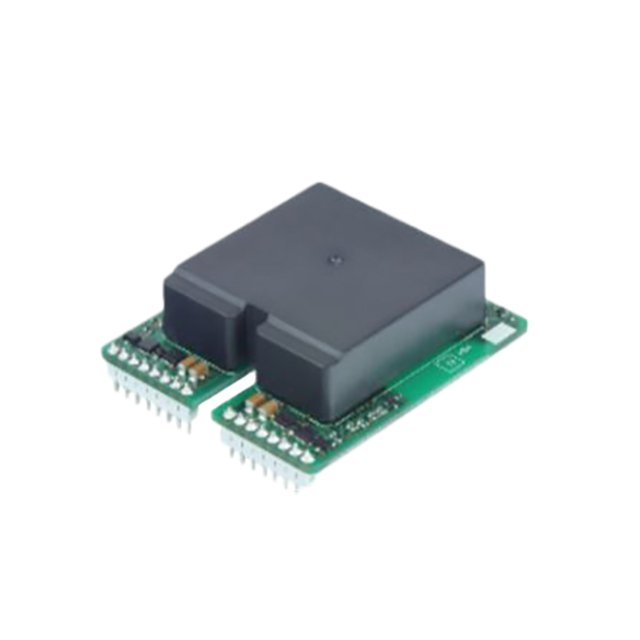

2CG010BBC14N

Active

Tamura

IC GATE DRVR HALF-BRIDGE MODULE

Search across all available documentation for this part.

Active

Tamura

IC GATE DRVR HALF-BRIDGE MODULE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2CG010BBC14N	2CG010 Series

Channel Type	Independent	Independent
Current - Peak Output (Source, Sink) [custom]	43 A	43 A
Current - Peak Output (Source, Sink) [custom]	43 A	43 A
Driven Configuration	Half-Bridge	Half-Bridge
Gate Type	-	IGBT
Input Type	Non-Inverting	Non-Inverting
Logic Voltage - VIL, VIH [custom]	3.85 V	3.85 V
Logic Voltage - VIL, VIH [custom]	1.65 V	1.65 V
Mounting Type	Through Hole	Through Hole
Number of Drivers	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Rise / Fall Time (Typ) [custom]	500 ns	500 ns
Rise / Fall Time (Typ) [custom]	500 ns	500 ns
Supplier Device Package	Module	Module
Voltage - Supply [Max]	28 V	28 V
Voltage - Supply [Min]	13 V	13 V

IC GATE DRVR HALF-BRIDGE MODULE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Mounting Type	Package / Case	Driven Configuration	Number of Drivers	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Channel Type	Logic Voltage - VIL, VIH [custom]	Logic Voltage - VIL, VIH [custom]	Gate Type
Tamura 2CG010BBC14N	85 °C	-40 °C	Module	43 A	43 A	Through Hole	Module	Half-Bridge	2	500 ns	500 ns	Non-Inverting	28 V	13 V	Independent	3.85 V	1.65 V
Tamura 2CG010DBC11N	85 °C	-40 °C	Module	43 A	43 A	Through Hole	Module	Half-Bridge	2	500 ns	500 ns	Non-Inverting	28 V	13 V	Independent	3.85 V	1.65 V	IGBT
Tamura 2CG010BBC13N	85 °C	-40 °C	Module	43 A	43 A	Through Hole	Module	Half-Bridge	2	500 ns	500 ns	Non-Inverting	28 V	13 V	Independent	3.85 V	1.65 V
Tamura 2CG010BBC12N	85 °C	-40 °C	Module	43 A	43 A	Through Hole	Module	Half-Bridge	2	500 ns	500 ns	Non-Inverting	28 V	13 V	Independent	3.85 V	1.65 V
Tamura 2CG010BBC11N	85 °C	-40 °C	Module	43 A	43 A	Through Hole	Module	Half-Bridge	2	500 ns	500 ns	Non-Inverting	28 V	13 V	Independent	3.85 V	1.65 V
Tamura 2CG010DBC12N	85 °C	-40 °C	Module	43 A	43 A	Through Hole	Module	Half-Bridge	2	500 ns	500 ns	Non-Inverting	28 V	13 V	Independent	3.85 V	1.65 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 60.00

General part information

Half-Bridge Gate Driver IC Non-Inverting Module
