VS9V0UA1VWMTFTR

Active

Rohm Semiconductor

9V 200W, COMPACT AND HIGHLY RELIABLE, TRANSIENT VOLTAGE SUPPRESSOR FOR AUTOMOTIVE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsWhat Is Thermal Design PCB Layout for TVS Diodes +33

VS9V0UA1VWMTFTR

Active

Rohm Semiconductor

9V 200W, COMPACT AND HIGHLY RELIABLE, TRANSIENT VOLTAGE SUPPRESSOR FOR AUTOMOTIVE

Deep-Dive with AI

DocumentsWhat Is Thermal Design PCB Layout for TVS Diodes +33

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VS9V0UA1VWMTFTR

Current - Peak Pulse (10/1000µs)	13 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature	150 °C

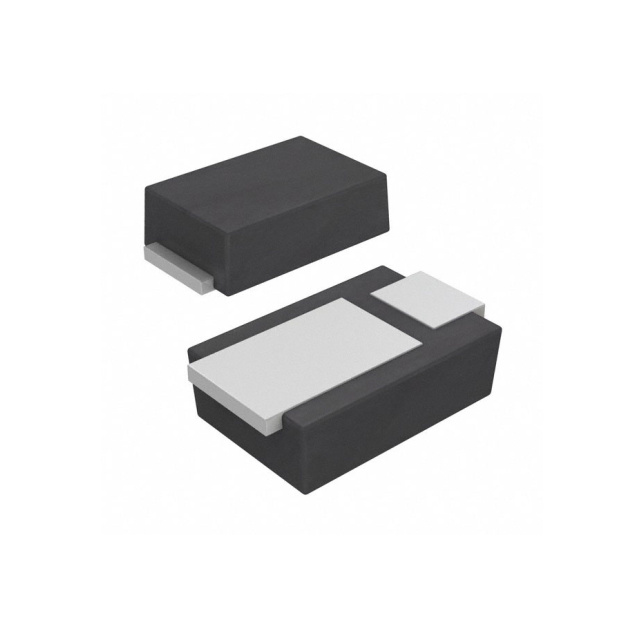

Package / Case	2-SMD, Flat Leads
Power - Peak Pulse	200 W
Power Line Protection	False
Supplier Device Package	PMDE
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	10 V
Voltage - Clamping (Max) @ Ipp [Max]	15.4 V
Voltage - Reverse Standoff (Typ)	9 V

VS9V0UA1VWMTF Series

9V 200W, Compact and Highly Reliable, Transient Voltage Suppressor for Automotive

Part	Current - Peak Pulse (10/1000µs)	Unidirectional Channels [custom]	Operating Temperature	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Package / Case	Supplier Device Package	Grade	Power Line Protection	Type	Mounting Type	Voltage - Reverse Standoff (Typ)	Power - Peak Pulse
Rohm Semiconductor VS9V0UA1VWMTFTR	13 A	1	150 °C	15.4 V	10 V	2-SMD, Flat Leads	PMDE	Automotive		Zener	Surface Mount	9 V	200 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.90
		10	$ 0.56
		100	$ 0.37
		500	$ 0.28
		1000	$ 0.25
	Digi-Reel®	1	$ 0.90
		10	$ 0.56
		100	$ 0.37
		500	$ 0.28
		1000	$ 0.25
	Tape & Reel (TR)	3000	$ 0.17
Newark	Each	1	$ 0.72
		10	$ 0.48
		100	$ 0.33
		500	$ 0.26
		1000	$ 0.24
		2500	$ 0.21
		12000	$ 0.18

Description

General part information

VS9V0UA1VWMTF Series

VS9V0UA1VWMTF is high reliability TVS Diode which is AEC-Q101 qualified, for surge protection and voltage regulation. It achieves the same electrical characteristics as conventional ROHM products in the small PMDE package. PMDE package is highly reliable and has excellent heat dissipation efficiency.
