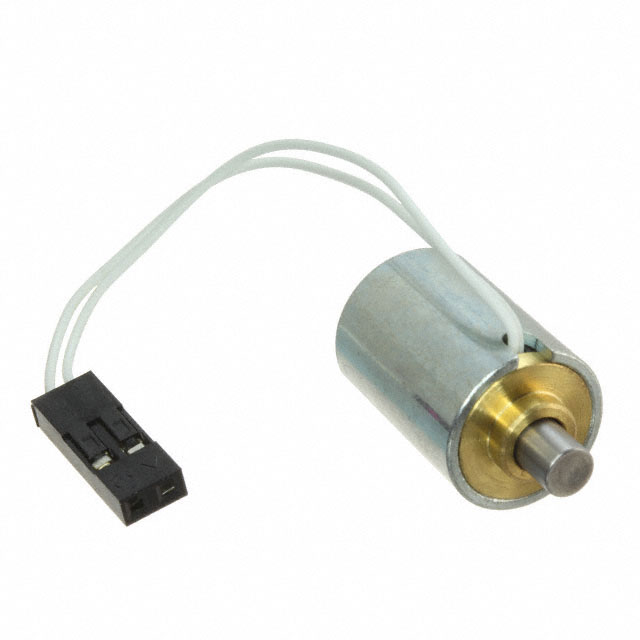

DSTL-0418-18
ActiveDelta Electronics
SOLENOID PULL CONTINUOUS 18V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DSTL-0418-18
ActiveDelta Electronics
SOLENOID PULL CONTINUOUS 18V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DSTL-0418-18 |
|---|---|
| DC Resistance (DCR) | 233 Ohm |
| Diameter - Shaft [diameter] | 3.97 mm |
| Diameter - Shaft [diameter] | 0.156 in |
| Duty Cycle | Continuous |
| Mounting Type | Chassis Mount |
| Power (Watts) | 1.4 W |
| Shaft Detail | Round |
| Size / Dimension [diameter] | 0.504 " |
| Size / Dimension [diameter] | 12.8 mm |
| Size / Dimension [x] | 17.5 mm |
| Size / Dimension [x] | 0.689 in |
| Stroke Length | 3.18 mm |
| Stroke Length | 0.125 in |
| Technology | Electromechanical |
| Type | Closed Frame (Pull), Tubular |
| Voltage - Rated | 18 VDC |
| Weight | 0.029 lb |
| Weight | 13.15 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 324 | $ 6.51 | |
Description
General part information
DSTL-0418 Series
Continuous Duty Solenoid Closed Frame (Pull), Tubular Type 0.125" (3.18mm) Stroke 18VDC Chassis Mount
