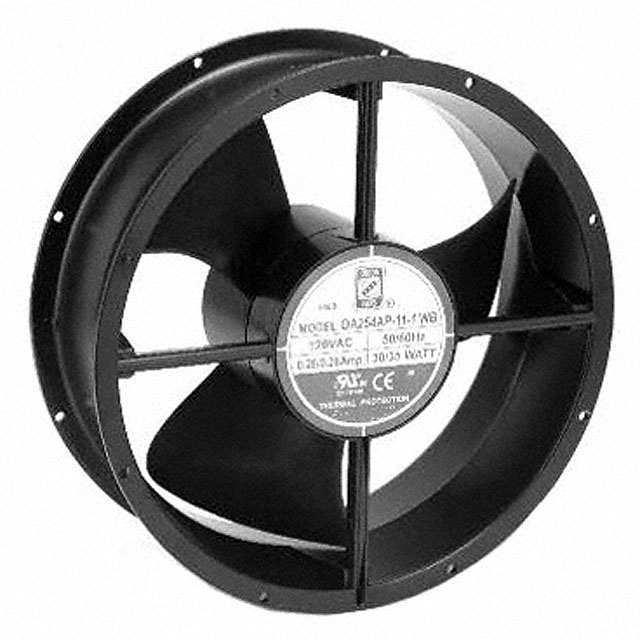

OA254AP-11-1TB
ActiveOrion Fans
AC AXIAL FAN, 115V, CIRCULAR, 254 MM, 89 MM, BALL BEARING, 547 CFM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
OA254AP-11-1TB
ActiveOrion Fans
AC AXIAL FAN, 115V, CIRCULAR, 254 MM, 89 MM, BALL BEARING, 547 CFM
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | OA254AP-11-1TB |
|---|---|
| Air Flow | 15.32 m³/min |
| Air Flow | 547 CFM |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.29 A |
| Fan Type | Tubeaxial |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Lifetime @ Temp. | 60000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Noise | 55 dB |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 35 W |
| RPM | 1650 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 10 in |
| Static Pressure | 0.39 in H2O |
| Static Pressure | 97.1 Pa |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Voltage Range [Max] | 130 VAC |
| Voltage Range [Min] | 80 VAC |
| Weight | 1.9 kg |
| Weight | 4.2 lbs |
| Width [y] | 89 mm |
OA254AP Series
| Part | Size / Dimension [diameter] | Size / Dimension | Air Flow | Air Flow | Noise | RPM | Weight | Weight | Bearing Type | Static Pressure | Static Pressure | Power (Watts) | Material - Frame | Current Rating (Amps) | Termination | Width [y] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Lifetime @ Temp. | Approval Agency | Voltage - Rated | Features | Fan Type | Material - Blade | Voltage Range [Min] | Voltage Range [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Orion Fans | 10 in | Round | 550 CFM | 15.4 mł/min | 55 dB | 1650 RPM | 4.3 lbs | 2 kg | Ball | 0.4 in H2O | 99.6 Pa | 33 W | Aluminum | 0.29 A | 2 Terminals | 89 mm | 80 C | 80 °C | -20 °C | -20 C | 60000 Hrs | cURus TUV | 115 VAC | Capacitor Salt Fog Rated Thermal Overload Protector (TOP) | Tubeaxial | Polybutylene Terephthalate (PBT) | ||
Orion Fans | 10 in | Round | 547 CFM | 15.32 m³/min | 55 dB | 1650 RPM | 4.2 lbs | 1.9 kg | Ball | 0.39 in H2O | 97.1 Pa | 35 W | Aluminum | 0.29 A | 2 Terminals | 89 mm | 80 C | 80 °C | -20 °C | -20 C | 60000 Hrs | cURus TUV | 115 VAC | Capacitor Thermal Overload Protector (TOP) | Tubeaxial | Polybutylene Terephthalate (PBT) | 80 VAC | 130 VAC |
Orion Fans | 10 in | Round | 550 CFM | 15.4 mł/min | 55 dB | 1650 RPM | 4.3 lbs | 2 kg | Ball | 0.4 in H2O | 99.6 Pa | 33 W | Aluminum | 140 mA | 2 Terminals | 89 mm | 80 C | 80 °C | -20 °C | -20 C | 60000 Hrs | cURus TUV | 230 VAC | Capacitor Salt Fog Rated Thermal Overload Protector (TOP) | Tubeaxial | Polybutylene Terephthalate (PBT) | ||
Orion Fans | 10 in | Round | 547 CFM | 15.32 m³/min | 55 dB | 1650 RPM | 4.2 lbs | 1.9 kg | Ball | 0.39 in H2O | 97.1 Pa | 35 W | Aluminum | 140 mA | 2 Wire Leads | 89 mm | 80 C | 80 °C | -20 °C | -20 C | 60000 Hrs | cURus TUV | 230 VAC | Capacitor Thermal Overload Protector (TOP) | Tubeaxial | Polybutylene Terephthalate (PBT) | 160 VAC | 260 VAC |
Orion Fans | 10 in | Round | 547 CFM | 15.32 m³/min | 55 dB | 1650 RPM | 4.2 lbs | 1.9 kg | Ball | 0.39 in H2O | 97.1 Pa | 35 W | Aluminum | 0.29 A | 2 Wire Leads | 89 mm | 80 C | 80 °C | -20 °C | -20 C | 60000 Hrs | cURus TUV | 115 VAC | Capacitor Thermal Overload Protector (TOP) | Tubeaxial | Polybutylene Terephthalate (PBT) | 80 VAC | 130 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
OA254AP Series
Fan Tubeaxial 115VAC Round - 254mm Dia Ball 547.0 CFM (15.32m³/min) 2 Terminals
