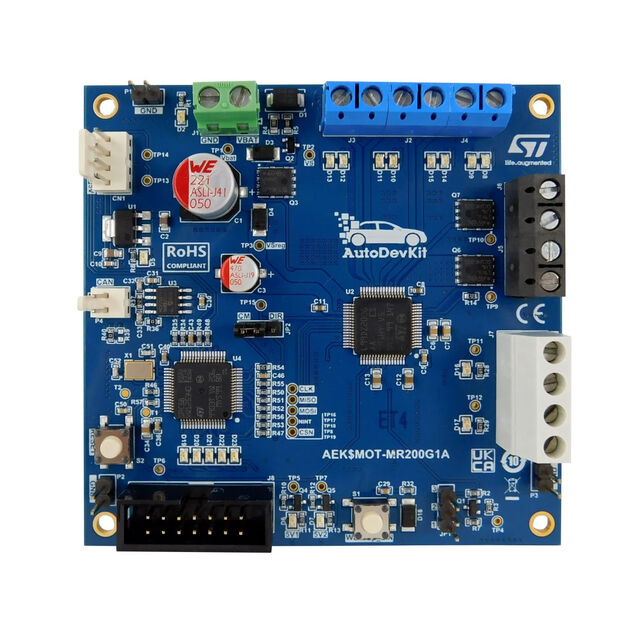

AEK-MOT-MR200G1

Active

STMicroelectronics

VEHICLE MIRROR CONTROLLER BOARD BASED ON L99DZ200G MULTIOUTPUT DRIVER AND SPC582B60E1 CHORUS 1M MICROCONTROLLER

Deep-Dive with AI

Search across all available documentation for this part.

Documents +4

AEK-MOT-MR200G1

Active

STMicroelectronics

VEHICLE MIRROR CONTROLLER BOARD BASED ON L99DZ200G MULTIOUTPUT DRIVER AND SPC582B60E1 CHORUS 1M MICROCONTROLLER

Deep-Dive with AI

Documents +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AEK-MOT-MR200G1

Embedded	True
Function	Motor Controller/Driver
Primary Attributes	Dual DC Motor Driver, Dual High-Side Driver
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	L99DZ200G, SPC582B60E1

AEK-MOT-MR200G1 Series

Vehicle mirror controller board based on L99DZ200G multioutput driver and SPC582B60E1 Chorus 1M microcontroller

Part	Type	Embedded	Primary Attributes	Supplied Contents	Function	Utilized IC / Part
STMicroelectronics AEK-MOT-MR200G1	Power Management		Dual DC Motor Driver Dual High-Side Driver	Board(s)	Motor Controller/Driver	L99DZ200G SPC582B60E1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 65.00
Newark	Each	1	$ 67.60

Description

General part information

AEK-MOT-MR200G1 Series

The AEK-MOT-MR200G1 is designed as a mini zone controller for the side mirror application.

The AEK-MOT-MR200G1 hosts an SPC582B60E1 chorus 1M microcontroller and an L99DZ200G automotive-grade multioutput driver.

Thanks to the integrated L99DZ200G, the board allows controlling different functions related to a vehicle side mirror: folding, unfolding, X-Y mirror inclination, electrochromic dimming, and heating.
