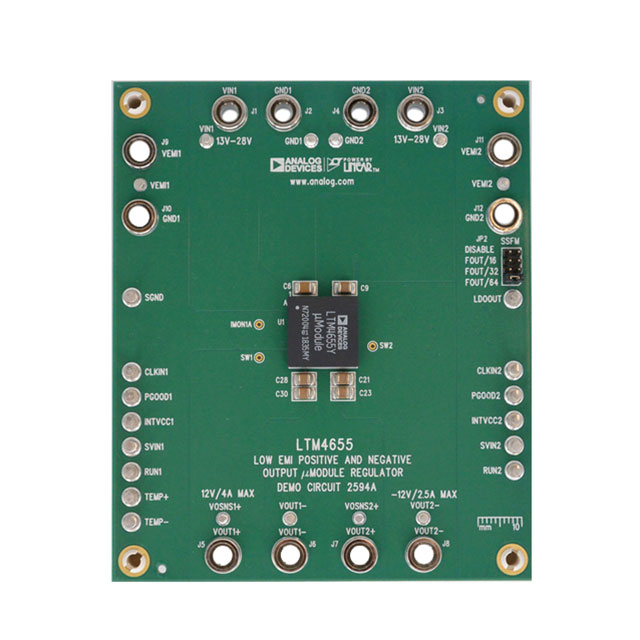

DC2594A
ActiveAnalog Devices
DEMO BOARD, MICRO MODULE REGULATOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DC2594A
ActiveAnalog Devices
DEMO BOARD, MICRO MODULE REGULATOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DC2594A |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 4 A, 2.5 A |
| Frequency - Switching | 1.2 MHz |
| Main Purpose | DC/DC, Positive and Negative |
| Outputs and Type | 2 |
| Outputs and Type | Non-Isolated |
| Supplied Contents | Board(s) |
| Utilized IC / Part | LTM4655 |
| Voltage - Input [Max] | 28 V |
| Voltage - Input [Min] | 13 V |
| Voltage - Output | 12 V |
LTM4655 Series
| Part | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Features | Voltage - Input (Min) [Min] | Voltage - Output 2 [Max] | Current - Output (Max) | Power (Watts) | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Mounting Type | Applications | Number of Outputs | Type | Main Purpose | Utilized IC / Part | Board Type | Voltage - Output | Outputs and Type | Outputs and Type | Frequency - Switching | Current - Output | Voltage - Input [Max] | Voltage - Input [Min] | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices | 16 mm | 0.21 in | 5.2 mm | 0.63 " | 0.63 in | 16 mm | 144-BBGA Module | 125 °C | -40 °C | 144-BGA (16x16) | Adjustable Output | 3.1 V | -26.5 V | 4 A | 50 W | 26.5 V | 0.5 V | Surface Mount | ITE (Commercial) | 2 | Non-Isolated PoL Module | |||||||||||
Analog Devices | 16 mm | 0.21 in | 5.2 mm | 0.63 " | 0.63 in | 16 mm | 144-BBGA Module | 125 °C | -55 °C | 144-BGA (16x16) | Adjustable Output | 3.1 V | -26.5 V | 4 A | 96 W | 26.5 V | 0.5 V | Surface Mount | ITE (Commercial) | 2 | Non-Isolated PoL Module | |||||||||||
Analog Devices | DC/DC Positive and Negative | LTM4655 | Fully Populated | 12 V | 2 | Non-Isolated | 1.2 MHz | 2.5 A 4 A | 28 V | 13 V | Board(s) | |||||||||||||||||||||
Analog Devices | 16 mm | 0.21 in | 5.2 mm | 0.63 " | 0.63 in | 16 mm | 144-BBGA Module | 125 °C | -55 °C | 144-BGA (16x16) | Adjustable Output | 3.1 V | -26.5 V | 4 A | 212 W | 26.5 V | 0.5 V | Surface Mount | ITE (Commercial) | 2 | Non-Isolated PoL Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LTM4655 Series
LTM4655 µModule® DC/DC, Positive and Negative 2, Non-Isolated Outputs Evaluation Board
