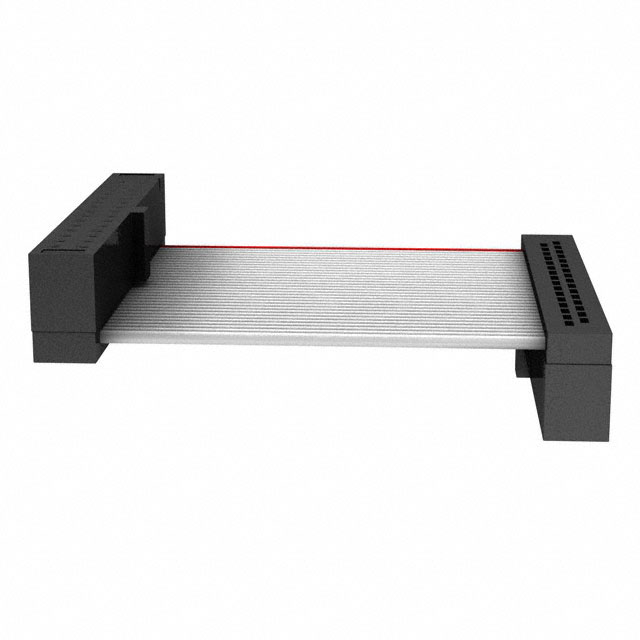

Specification	FFSD-16-D-06.00-01-N-RW

Cable Termination	IDC
Color	Gray, Ribbon
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Polarizing Key, Reverse Wiring
Length	0.5 ft
Number of Positions	32
Number of Rows	2
Pitch - Cable	0.025 in
Pitch - Connector	0.05 in
Shielding	Unshielded

FFSD-16 Series

Part	Features	Pitch - Connector	Shielding	Pitch - Cable	Cable Termination	Contact Finish	Color	Length	Connector Type	Number of Positions	Number of Rows	Contact Finish Thickness	Mounting Type	Row Spacing	Wire Type	Wire Gauge	Pitch	Contact Type
Samtec Inc. FFSD-16-D-03.00-01-N-R	Polarizing Key	0.05 in	Unshielded	0.025 in	IDC	Gold	Gray Ribbon	3 "	Reversed Socket to Socket	32	2	10 Ąin
Samtec Inc. FFSD-16-S-40.00-01-N	Polarizing Key	0.05 in	Unshielded	0.025 in	IDC	Gold	Gray Ribbon	3.33 ft	Socket to Cable	32	2	10 Ąin
Samtec Inc. FFSD-16-D-06.00-01-F-N	Polarizing Key	0.05 in	Unshielded	0.025 in	IDC	Gold	Gray Ribbon	0.5 ft	Socket to Socket	32	2	3 µin
Samtec Inc. FFSD-16-S-10.00-01-N-RW	Polarizing Key Reverse Wiring	0.05 in	Unshielded	0.025 in	IDC	Gold	Gray Ribbon	0.833 ft	Socket to Cable	32	2	10 Ąin
Samtec Inc. FFSD-16-S-10.00-01-N	Polarizing Key	0.05 in	Unshielded	0.025 in	IDC	Gold	Gray Ribbon	0.833 ft	Socket to Cable	32	2	10 Ąin
Samtec Inc. FFSD-16-D-04.00-01-N-SR	Polarizing Key Strain Relief	0.05 in	Unshielded	0.025 in	IDC	Gold	Gray Ribbon	0.333 ft	Socket to Socket	32	2	10 Ąin
Samtec Inc. FFSD-16-D-02.75-01-N-R	Polarizing Key Reverse Wiring	0.05 in	Unshielded	0.025 in	IDC	Gold	Gray Ribbon	0.229 ft	Reversed Socket to Socket	32	2	10 Ąin
Samtec Inc. FFSD-16-01-N	Feed Through Polarizing Key				IDC	Gold	Black		Receptacle	32	2	10 Ąin	Free Hanging (In-Line)	0.05 in	Ribbon Cable	30 AWG	0.05 in	Female Socket
Samtec Inc. FFSD-16-D-03.00-01-N-RW	Polarizing Key Reverse Wiring	0.05 in	Unshielded	0.025 in	IDC	Gold	Gray Ribbon	3 "	Socket to Socket	32	2	10 Ąin
Samtec Inc. FFSD-16-S-18.00-01-N	Polarizing Key	0.05 in	Unshielded	0.025 in	IDC	Gold	Gray Ribbon	1.5 ft	Socket to Cable	32	2	10 Ąin
