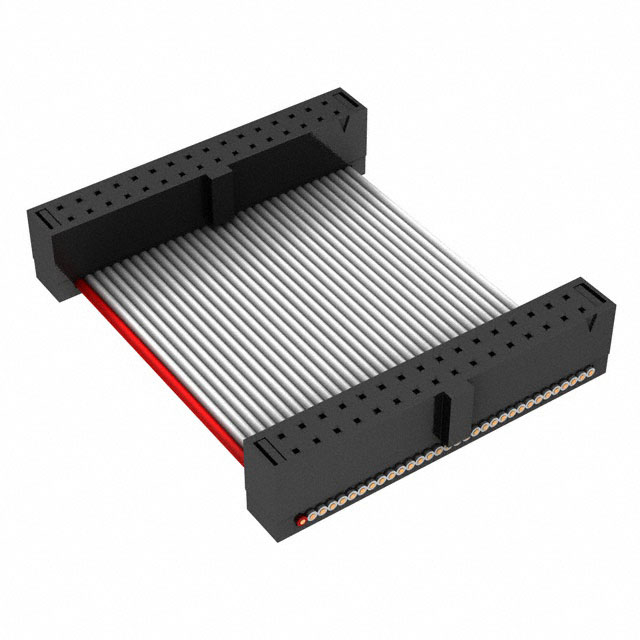

FFSD-16-D-03.00-01-N-RW

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFSD-16-D-03.00-01-N-RW

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-16-D-03.00-01-N-RW

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Reverse Wiring
Length	3 "
Length	76.2 mm
Length	0.25 ft
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-16 Series

Part	Shielding	Features	Pitch - Connector	Pitch - Connector	Pitch - Cable [x]	Pitch - Cable	Number of Rows	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Connector Type	Cable Termination	Length [x]	Length	Length	Length	Length	Color	Wire Type	Mounting Type	Wire Gauge	Contact Type	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]
Samtec Inc. FFSD-16-S-40.00-01-N	Unshielded	Polarizing Key	0.05 in	1.27 mm	0.025 in	0.64 mm	2	Gold	10 Áin	0.25 Ám	1.02 m	3.33 '	Socket to Cable	IDC
Samtec Inc. FFSD-16-S-03.15-01-N	Unshielded	Polarizing Key	0.05 in	1.27 mm	0.025 in	0.64 mm	2	Gold	10 Áin	0.25 Ám	80.01 mm	0.263 '	Socket to Cable	IDC	3.15 in
Samtec Inc. FFSD-16-D-06.00-01-F-N	Unshielded	Polarizing Key	0.05 in	1.27 mm	0.025 in	0.64 mm	2	Gold	3 Áin	0.076 Ám			Socket to Socket	IDC		152.4 mm	6 "	0.5 '
Samtec Inc. FFSD-16-S-10.00-01-N-RW	Unshielded	Polarizing Key Reverse Wiring	0.05 in	1.27 mm	0.025 in	0.64 mm	2	Gold	10 Áin	0.25 Ám			Socket to Cable	IDC		254 mm	10 in		0.833 ft
Samtec Inc. FFSD-16-S-10.00-01-N	Unshielded	Polarizing Key	0.05 in	1.27 mm	0.025 in	0.64 mm	2	Gold	10 Áin	0.25 Ám			Socket to Cable	IDC		254 mm	10 in		0.833 ft
Samtec Inc. FFSD-16-D-04.00-01-N-SR	Unshielded	Polarizing Key Strain Relief	0.05 in	1.27 mm	0.025 in	0.64 mm	2	Gold	10 Áin	0.25 Ám	101.6 mm	0.333 ft	Socket to Socket	IDC	4 "
Samtec Inc. FFSD-16-01-N		Feed Through Polarizing Key					2	Gold	10 Áin	0.25 Ám			Receptacle	IDC						Black	Ribbon Cable	Free Hanging (In-Line)	30 AWG	Female Socket	1.27 mm	0.05 in	0.05 in	1.27 mm
Samtec Inc. FFSD-16-D-03.00-01-N-RW	Unshielded	Polarizing Key Reverse Wiring	0.05 in	1.27 mm	0.025 in	0.64 mm	2	Gold	10 Áin	0.25 Ám			Socket to Socket	IDC		76.2 mm	3 "		0.25 ft
Samtec Inc. FFSD-16-S-18.00-01-N	Unshielded	Polarizing Key	0.05 in	1.27 mm	0.025 in	0.64 mm	2	Gold	10 Áin	0.25 Ám	457.2 mm	1.5 ft	Socket to Cable	IDC
Samtec Inc. FFSD-16-D-02.00-01-N	Unshielded	Polarizing Key	0.05 in	1.27 mm	0.025 in	0.64 mm	2	Gold	10 Áin	0.25 Ám			Socket to Socket	IDC		50.8 mm	2 "		0.167 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.82

Description

General part information

FFSD-16 Series

32 Position Cable Assembly Rectangular Socket to Socket 0.250' (76.20mm, 3.00")
