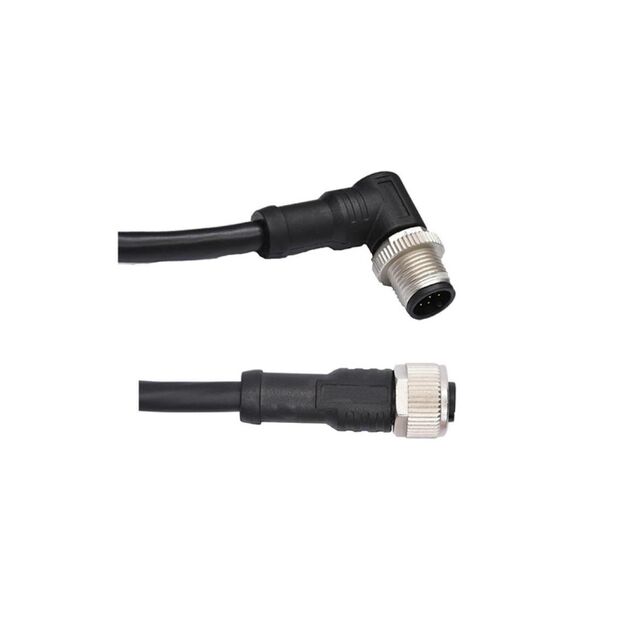

M12A10FL-12AMR-SBA05
ActiveAmphenol LTW
CABLE: FOR SENSORS/AUTOMATION; PIN: 10; WITH METAL NUT; PLUG; 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M12A10FL-12AMR-SBA05
ActiveAmphenol LTW
CABLE: FOR SENSORS/AUTOMATION; PIN: 10; WITH METAL NUT; PLUG; 30V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A10FL-12AMR-SBA05 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 10 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle, Right Angle |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions [custom] | 10 |
| 2nd Connector Number of Positions Loaded | All |
| 2nd Connector Shell Size - Insert | M12 |
| 2nd Connector Type | Plug |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection | IP68, IP69K |
| Length [x] | 1.64 ft |
| Length [x] | 500 mm |
| Shielding | Unshielded |
| Usage | Industrial Environments |
M12A10FL Series
| Part | 2nd Connector Mounting Type | Color | 2nd Connector Shell Size - Insert | 2nd Connector Gender | 2nd Connector Type | 1st Connector Shell Size - Insert | 1st Connector Mounting Type | 2nd Connector Number of Positions Loaded | 2nd Connector Number of Positions [custom] | 1st Connector Orientation | Length [x] | Length [x] | Cable Material | Assembly Configuration | Usage | Cable Type | Ingress Protection | Shielding | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol LTW | Free Hanging (In-Line) | Black | M12 | Female Sockets | Plug | M12 | Free Hanging (In-Line) | All | 10 | A | 1.64 ft | 500 mm | Polyurethane (PUR) | Standard | Industrial Environments | Round | IP68 IP69K | Unshielded | Plug | Female Sockets | 10 | All |
Amphenol LTW | Free Hanging (In-Line) | Black | M12 | Female Sockets | Plug | M12 | Free Hanging (In-Line) | All | 10 | A | 1.64 ft | 500 mm | Polyvinyl Chloride (PVC) | Standard | Industrial Environments | Round | IP68 IP69K | Unshielded | Plug Right Angle | Female Sockets | 10 | All |
Amphenol LTW | Free Hanging (In-Line) | Black | M12 | Female Sockets | Plug | M12 | Free Hanging (In-Line) | All | 10 | A | 6.56 ft | 2 m | Polyurethane (PUR) | Standard | Industrial Environments | Round | IP68 IP69K | Unshielded | Plug | Female Sockets | 10 | All |
Amphenol LTW | Free Hanging (In-Line) | Black | M12 | Female Sockets | Plug | M12 | Free Hanging (In-Line) | All | 10 | A | 1.64 ft | 500 mm | Polyurethane (PUR) | Standard | Industrial Environments | Round | IP68 IP69K | Unshielded | Receptacle Right Angle | Male Pins | 10 | All |
Amphenol LTW | Free Hanging (In-Line) | Black | M12 | Female Sockets | Plug | M12 | Free Hanging (In-Line) | All | 10 | A | 1.64 ft | 500 mm | Polyvinyl Chloride (PVC) | Standard | Industrial Environments | Round | IP68 IP69K | Unshielded | Receptacle Right Angle | Male Pins | 10 | All |
Amphenol LTW | Free Hanging (In-Line) | Black | M12 | Female Sockets | Plug | M12 | Free Hanging (In-Line) | All | 10 | A | 1.64 ft | 500 mm | Polyurethane (PUR) | Standard | Industrial Environments | Round | IP68 IP69K | Unshielded | Plug Right Angle | Female Sockets | 10 | All |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M12A10FL Series
Circular Cable Assembly Unshielded 1.64' (500.00mm)
