AXT322124

Obsolete

Panasonic Electric Works

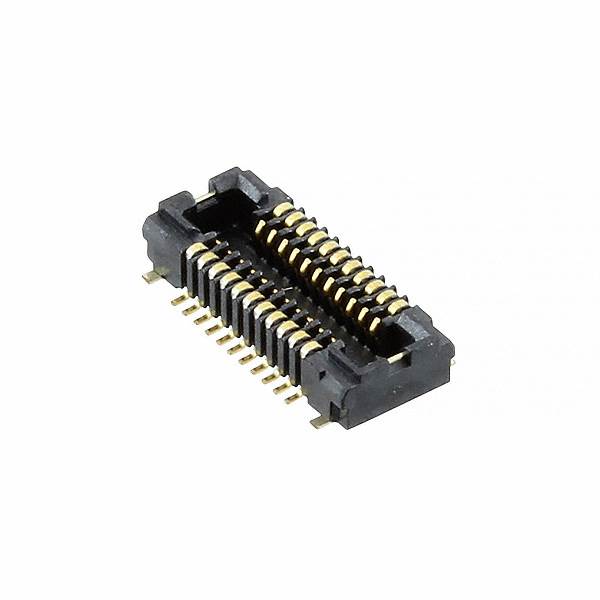

CONN SOCKET 22POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 22POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT322124

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm, 2 mm
Mounting Type	Surface Mount
Number of Positions	22 positions
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Height Above Board [z]	Height Above Board [z]	Number of Rows	Number of Positions	Mated Stacking Heights	Connector Type	Features	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish
Panasonic Electric Works AXT322124	0.057 in	1.45 mm	2	22 positions	1.5 mm 2 mm	Outer Shroud Contacts Socket	Solder Retention	0.016 in	0.4 mm	Surface Mount	Gold
Panasonic Electric Works AXT322114	0.057 in	1.45 mm	2	22 positions	1.5 mm	Outer Shroud Contacts Socket	Board Guide Solder Retention	0.016 in	0.4 mm	Surface Mount	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
