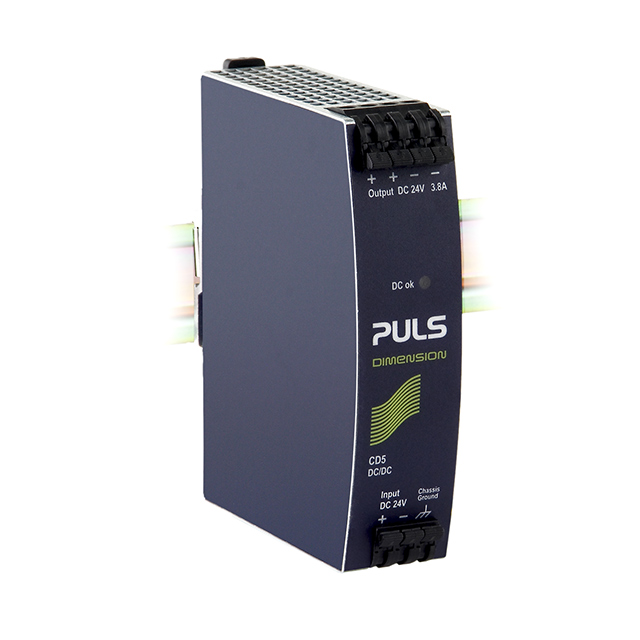

CD5.241-L1

Active

PULS, LP

DC/DC DIN RAIL SUPPLY 24V 92W

Search across all available documentation for this part.

Active

PULS, LP

DC/DC DIN RAIL SUPPLY 24V 92W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CD5.241-L1	CD5 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	ATEX, ABS, CSA, NEC, DNV GL, IECEx, IEC, EAC, UL	UL, CSA, EAC, ATEX, ABS, DNV GL, IECEx, IEC, NEC
Current - Output (Max) [Max]	3.8 A	3.8 - 8 A
DC Voltage - Input (Max) [Max]	32.4 V	16.2 - 60 V
DC Voltage - Input (Min) [Min]	14.4 V	10.8 - 36 V
Efficiency	90.5 %	87.7 - 90.5 %
Input Type	DC	DC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Power (Watts)	92 W	84 - 96 W
Size / Dimension [x]	102 mm	102 mm
Size / Dimension [x]	4.02 in	4.02 in
Size / Dimension [y]	32 mm	32 mm
Size / Dimension [y]	1.26 in	1.26 in
Size / Dimension [z]	124 mm	124 mm
Size / Dimension [z]	4.88 "	4.88 "
Standard Number	Class 2, Class I Div 2, 508, 60950-1	508, Class I Div 2, 60950-1, Class 2
Voltage - Output 1	24 V	12 - 24 V

DC/DC DIN RAIL SUPPLY 24V 120W

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Input Type	Number of Outputs	Efficiency	DC Voltage - Input (Min) [Min]	Applications	Standard Number	DC Voltage - Input (Max) [Max]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Power (Watts)
PULS, LP CD5.241-S1	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	DC	1	90.2 %	18 V	ITE (Commercial)	508, 60950-1, Class I Div 2	32.4 V	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	-25 °C	70 °C	5 A	24 V
PULS, LP CD5.242	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	DC	1	90.3 %	36 V	ITE (Commercial)	508, 60950-1, Class I Div 2	60 V	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	-25 °C	70 °C	5 A	24 V
PULS, LP CD5.121	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	DC	1	88.2 %	18 V	ITE (Commercial)	508, 60950-1, Class I Div 2	32.4 V	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	-25 °C	70 °C	8 A	12 V	96 W
PULS, LP CD5.241-L1	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	DC	1	90.5 %	14.4 V	ITE (Commercial)	508, 60950-1, Class 2, Class I Div 2	32.4 V	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, NEC, UL	-25 °C	70 °C	3.8 A	24 V	92 W
PULS, LP CD5.241	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	DC	1	90.3 %	18 V	ITE (Commercial)	508, 60950-1, Class I Div 2	32.4 V	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	-25 °C	70 °C	5 A	24 V
PULS, LP CD5.243	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	DC	1	87.7 %	10.8 V	ITE (Commercial)	508, 60950-1, Class I Div 2	16.2 V	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	-25 °C	70 °C	4 A	24 V	84 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 436.50

General part information

DC/DC DIN RAIL SUPPLY 24V 92W
