ANM-UL-5A

Active

OptiFuse

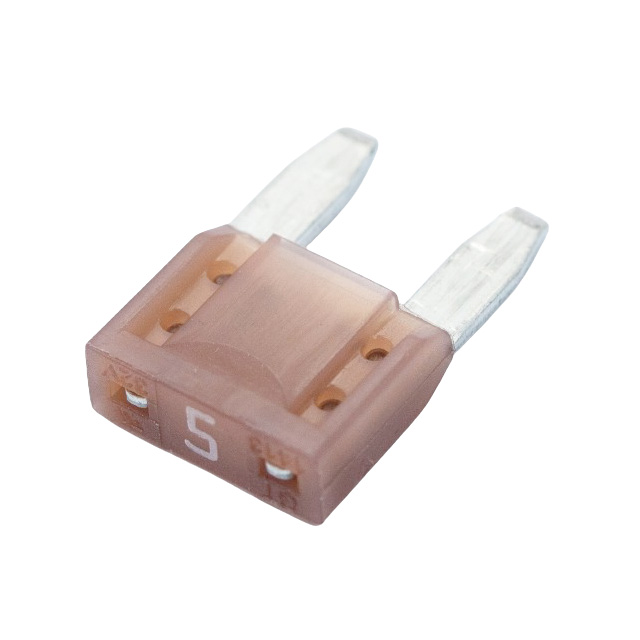

FUSE AUTOMOTIVE 5A 32VDC BLADE

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTOMOTIVE 5A 32VDC BLADE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ANM-UL-5A	ANM-UL Series

Approval Agency	ISO, UL 248, SAE, cURus	ISO, UL 248, SAE, cURus
Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Tan	White, Clear, Tan, Blue, Brown, Pink
Current Rating (Amps)	5 A	4 - 25 A
Fuse Type	Automotive	Automotive
Mounting Type	Requires Holder	Requires Holder
Package / Case	Blade, Miniature	Blade, Miniature
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	0.472 in	0.472 in
Size / Dimension [x]	12 mm	12 mm
Size / Dimension [y]	0.157 in	0.157 in
Size / Dimension [y]	4 mm	4 mm
Size / Dimension [z]	0.386 in	0.386 in
Size / Dimension [z]	9.8 mm	9.8 mm
Voltage Rating - DC	32 V	32 V

FUSE AUTO 25A 32VDC BLADE MINI

Part	Approval Agency	Response Time	Current Rating (Amps)	Fuse Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Color	Voltage Rating - DC	Package / Case	Breaking Capacity @ Rated Voltage	Mounting Type
OptiFuse ANM-UL-25A	cURus, ISO, SAE, UL 248	Fast Blow	25 A	Automotive	0.157 in	0.386 in	4 mm	9.8 mm	0.472 in	12 mm	Clear, White	32 V	Blade, Miniature	1 kA	Requires Holder
OptiFuse ANM-UL-5A	cURus, ISO, SAE, UL 248	Fast Blow	5 A	Automotive	0.157 in	0.386 in	4 mm	9.8 mm	0.472 in	12 mm	Tan	32 V	Blade, Miniature	1 kA	Requires Holder
OptiFuse ANM-UL-15A	cURus, ISO, SAE, UL 248	Fast Blow	15 A	Automotive	0.157 in	0.386 in	4 mm	9.8 mm	0.472 in	12 mm	Blue	32 V	Blade, Miniature	1 kA	Requires Holder
OptiFuse ANM-UL-7.5A	cURus, ISO, SAE, UL 248	Fast Blow	7.5 A	Automotive	0.157 in	0.386 in	4 mm	9.8 mm	0.472 in	12 mm	Brown	32 V	Blade, Miniature	1 kA	Requires Holder
OptiFuse ANM-UL-4A	cURus, ISO, SAE, UL 248	Fast Blow	4 A	Automotive	0.157 in	0.386 in	4 mm	9.8 mm	0.472 in	12 mm	Pink	32 V	Blade, Miniature	1 kA	Requires Holder
