2QG010DDC11N

Active

Tamura

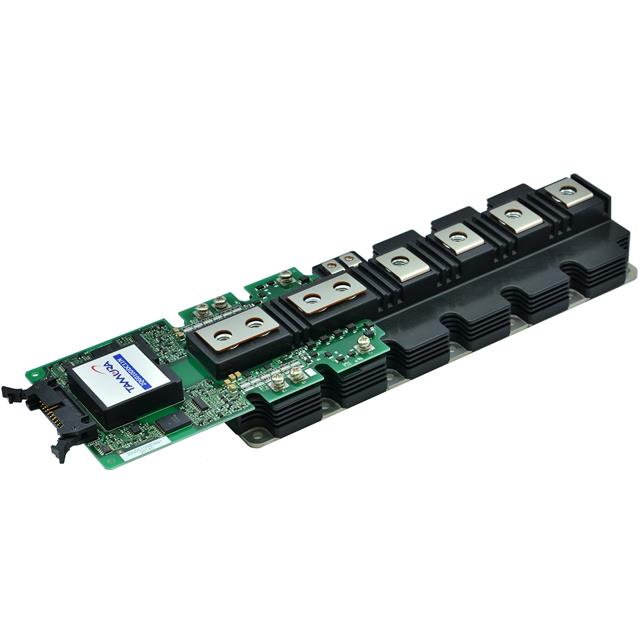

IC GATE DRVR HALF-BRIDGE MODULE

Search across all available documentation for this part.

Active

Tamura

IC GATE DRVR HALF-BRIDGE MODULE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Half-Bridge Gate Driver IC Non-Inverting Module

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2QG010DDC11N	2PG010 Series

Channel Type	Independent	Independent
Current - Peak Output (Source, Sink) [custom]	43 A	43 A
Current - Peak Output (Source, Sink) [custom]	43 A	43 A
Driven Configuration	Half-Bridge	Half-Bridge
Gate Type	IGBT	IGBT
Input Type	Non-Inverting	Non-Inverting
Logic Voltage - VIL, VIH	3.3 V, 0.5 V	0.5 - 3.3 V
Mounting Type	Chassis Mount	Chassis Mount
Number of Drivers	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Rise / Fall Time (Typ) [custom]	500 ns	500 ns
Rise / Fall Time (Typ) [custom]	500 ns	500 ns
Supplier Device Package	Module	Module
Voltage - Supply [Max]	28 V	28 V
Voltage - Supply [Min]	13 V	13 V

IC GATE DRVR HALF-BRIDGE MODULE

Part	Driven Configuration	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Input Type	Number of Drivers	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Gate Type	Logic Voltage - VIL, VIH	Channel Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Tamura 2PG010DDC11N	Half-Bridge	Chassis Mount	28 V	13 V	Module	Non-Inverting	2	43 A	43 A	IGBT	0.5 V, 3.3 V	Independent	500 ns	500 ns	Module	85 °C	-40 °C
Tamura 2PG010DCC11N	Half-Bridge	Chassis Mount	28 V	13 V	Module	Non-Inverting	2	43 A	43 A	IGBT	0.5 V, 3.3 V	Independent	500 ns	500 ns	Module	85 °C	-40 °C
Tamura 2QG010DDC11N	Half-Bridge	Chassis Mount	28 V	13 V	Module	Non-Inverting	2	43 A	43 A	IGBT	0.5 V, 3.3 V	Independent	500 ns	500 ns	Module	85 °C	-40 °C
