Q-1W05F0008048i

Active

Amphenol Custom Cable

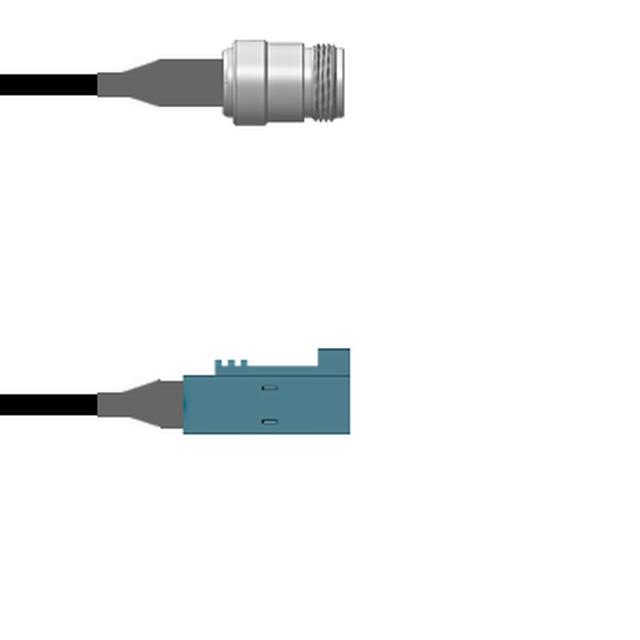

CBL ASSY NTYPE-FAKRA JCK-JCK 4'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1W05F0008048i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-FAKRA JCK-JCK 4'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1W05F0008048i

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	Fakra Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms
Style	N-Type to Fakra

Q-1W05F0 Series

Part	Style	1st Connector	Frequency - Max [Max]	2nd Connector Mounting Type	Cable Type	1st Connector Mounting Type	Overall Impedance	Length	Length	Length	2nd Connector	2nd Contact Gender	1st Contact Gender	Features	Color	Length [x]	Length [x]
Amphenol Custom Cable Q-1W05F0008001M	N-Type to Fakra	N-Type Jack	3 GHz	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	50 Ohms	1 m	3.3 ft	39.4 in	Fakra Jack	Female	Female	Shielded	Black
Amphenol Custom Cable Q-1W05F0008048i	N-Type to Fakra	N-Type Jack	3 GHz	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	50 Ohms	1200 mm	4 ft	48 in	Fakra Jack	Female	Female	Shielded	Black
Amphenol Custom Cable Q-1W05F00082.5M	N-Type to Fakra	N-Type Jack	3 GHz	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	50 Ohms	2.5 m	8.2 '	98.4 in	Fakra Jack	Female	Female	Shielded	Black
Amphenol Custom Cable Q-1W05F0008024i	N-Type to Fakra	N-Type Jack	3 GHz	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	50 Ohms	609.6 mm		24 "	Fakra Jack	Female	Female	Shielded	Black
Amphenol Custom Cable Q-1W05F0008072i	N-Type to Fakra	N-Type Jack	3 GHz	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	50 Ohms	1.8 m	6 ft	72 in	Fakra Jack	Female	Female	Shielded	Black
Amphenol Custom Cable Q-1W05F0008108i	N-Type to Fakra	N-Type Jack	3 GHz	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	50 Ohms	2.7 m	9 ft	108 in	Fakra Jack	Female	Female	Shielded	Black
Amphenol Custom Cable Q-1W05F00080.5M	N-Type to Fakra	N-Type Jack	3 GHz	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	50 Ohms	50 cm		19.69 "	Fakra Jack	Female	Female	Shielded	Black
Amphenol Custom Cable Q-1W05F0008003M	N-Type to Fakra	N-Type Jack	3 GHz	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	50 Ohms	3 m	9.8 '	118.1 in	Fakra Jack	Female	Female	Shielded	Black
Amphenol Custom Cable Q-1W05F0008.25M	N-Type to Fakra	N-Type Jack	3 GHz	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	50 Ohms				Fakra Jack	Female	Female	Shielded	Black	9.843 "	250 mm
Amphenol Custom Cable Q-1W05F0008009i	N-Type to Fakra	N-Type Jack	3 GHz	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	50 Ohms	228.6 mm		9 "	Fakra Jack	Female	Female	Shielded	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 56.77
		25	$ 55.67
		50	$ 54.56
		100	$ 53.46
		250	$ 52.35

Description

General part information

Q-1W05F0 Series

Cable Assembly Coaxial N-Type to Fakra RG-58 48.0" (1.2m) 4.0'

Documents

Technical documentation and resources

No documents available
