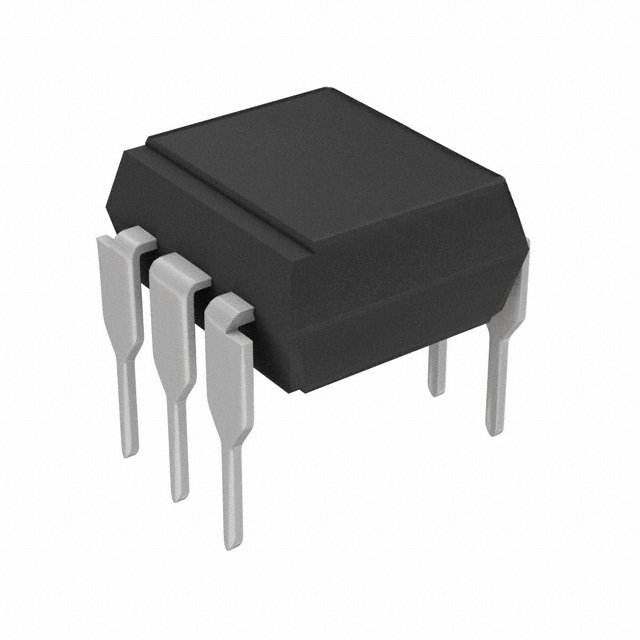

BRT22-F

Obsolete

Vishay Semiconductor Opto Division

PHOTOCOUPLER TRIAC 600V 6DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BRT22-F

Obsolete

Vishay Semiconductor Opto Division

PHOTOCOUPLER TRIAC 600V 6DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BRT22 Series

Optoisolator Triac Output 5300Vrms 1 Channel 6-DIP

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BRT22-F	BRT22 Series

Approval Agency	CQC, UL	CQC, UL, cUL, UR, VDE
Current - DC Forward (If) (Max) [Max]	60 mA	60 mA
Current - Hold (Ih)	500 µA	500 µA
Current - LED Trigger (Ift) (Max)	-	2 - 3 mA
Current - On State (It (RMS)) (Max)	300 mA	300 mA
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Channels	1	1
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	Triac	Triac
Package / Case	6-DIP	6-DIP, 6-SMD, Gull Wing
Package / Case	0.3 in	0.3 in
Package / Case	7.62 mm	7.62 mm
Static dV/dt (Min) [Min]	10 kV/µs	10 kV/µs
Supplier Device Package	6-DIP	6-DIP, 6-SMD
Turn On Time	35 µs	35 µs
Voltage - Forward (Vf) (Typ)	1.16 V	1.16 V
Voltage - Isolation	5300 Vrms	5300 Vrms
Voltage - Off State	600 V	600 V
Zero Crossing Circuit	True	True

BRT22 Series

PHOTOCOUPLER TRIAC 600V 6DIP

Part	Voltage - Isolation	Voltage - Off State	Output Type	Number of Channels	Turn On Time	Approval Agency	Supplier Device Package	Package / Case	Package / Case	Package / Case	Current - Hold (Ih)	Mounting Type	Current - DC Forward (If) (Max) [Max]	Voltage - Forward (Vf) (Typ)	Static dV/dt (Min) [Min]	Current - On State (It (RMS)) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Current - LED Trigger (Ift) (Max) [Max]
Vishay Semiconductor Opto Division BRT22-F	5300 Vrms	600 V	Triac	1	35 µs	CQC, UL	6-DIP	6-DIP	0.3 in	7.62 mm	500 µA	Through Hole	60 mA	1.16 V	10 kV/µs	300 mA	100 °C	-40 °C
Vishay Semiconductor Opto Division BRT22F-X007	5300 Vrms	600 V	Triac	1	35 µs	cUL, UR, VDE	6-SMD	6-SMD, Gull Wing			500 µA	Surface Mount	60 mA	1.16 V	10 kV/µs	300 mA	100 °C	-40 °C
Vishay Semiconductor Opto Division BRT22H-X017	5300 Vrms	600 V	Triac	1	35 µs	cUL, UR, VDE	6-SMD	6-SMD, Gull Wing			500 µA	Surface Mount	60 mA	1.16 V	10 kV/µs	300 mA	100 °C	-40 °C	2 mA
Vishay Semiconductor Opto Division BRT22F-X009	5300 Vrms	600 V	Triac	1	35 µs	cUL, UR, VDE	6-SMD	6-SMD, Gull Wing			500 µA	Surface Mount	60 mA	1.16 V	10 kV/µs	300 mA	100 °C	-40 °C
Vishay Semiconductor Opto Division BRT22H-X001	5300 Vrms	600 V	Triac	1	35 µs	cUL, UR, VDE	6-DIP	6-DIP	0.3 in	7.62 mm	500 µA	Through Hole	60 mA	1.16 V	10 kV/µs	300 mA	100 °C	-40 °C	2 mA
Vishay Semiconductor Opto Division BRT22F-X017T	5300 Vrms	600 V	Triac	1	35 µs	cUL, UR, VDE	6-SMD	6-SMD, Gull Wing			500 µA	Surface Mount	60 mA	1.16 V	10 kV/µs	300 mA	100 °C	-40 °C
Vishay Semiconductor Opto Division BRT22M	5300 Vrms	600 V	Triac	1	35 µs	cUL, UR, VDE	6-DIP	6-DIP	0.3 in	7.62 mm	500 µA	Through Hole	60 mA	1.16 V	10 kV/µs	300 mA	100 °C	-40 °C	3 mA
