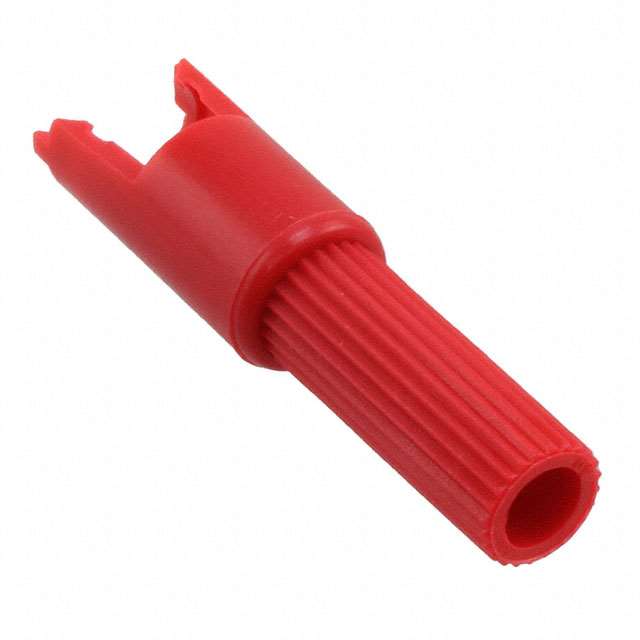

Specification	1-480351-2

Color	Red
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Detent Lock
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C

Commercial MATE-N-LOK Series

...

Part	Contact Finish	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Termination	Type	Pin or Socket	Contact Finish Thickness	Termination	Contact Finish - Mating	Insulation Color	Material Flammability Rating	Contact Shape	Number of Rows	Number of Positions	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Number of Positions Loaded	Contact Finish - Post	Features	Insulation Material	Style	Fastening Type	Current Rating	Insulation Height	Contact Material	Pitch - Mating	Contact Type	Connector Type	Shrouding	Applications	Color	Pitch	Wire Gauge	Wire Type	Cable Termination
TE Connectivity AMP Connectors 163307-4	Tin	13 AWG	17 AWG	Crimp	Power	Pin
TE Connectivity AMP Connectors 60617-5	Gold	18 AWG	24 AWG	Crimp		Socket	30 µin
TE Connectivity AMP Connectors 163303-6	Tin	13 AWG	17 AWG	Crimp		Pin
TE Connectivity AMP Connectors 770829-1								Solder	Tin	Black	UL94 V-2	Circular	1	4	Right Angle Surface Mount	-55 °C	105 °C	250 V	All	Tin	Board Guide Board Lock	Nylon Polyamide (PA)	Board Cable/Wire	Detent Lock	15 A	0.33 in	Copper Alloy	0.2 in	Male Pin	Header	Shrouded - 4 Wall	General Purpose
TE Connectivity AMP Connectors 1-480498-1				Crimp									1	2	Free Hanging (In-Line)	-55 °C	105 °C					Nylon Polyamide (PA)		Friction Lock					Male Pin	Receptacle			Black	5.08 mm
TE Connectivity AMP Connectors 1-480728-0				Crimp									1	4	Free Hanging (In-Line)	-55 °C	105 °C					Nylon Polyamide (PA)							Male Pin	Receptacle			Natural	5.08 mm
TE Connectivity AMP Connectors 61314-6	Gold	18 AWG	24 AWG	Crimp		Socket	30 µin
TE Connectivity AMP Connectors 794036-2	Tin												1	4	Free Hanging (In-Line)						Feed Through								Female Socket	Plug			Yellow	5.08 mm	20 AWG	Discrete	IDC
TE Connectivity AMP Connectors 61086-1	Tin	14 AWG	20.5 AWG	Crimp		Pin
TE Connectivity AMP Connectors 61116-4	Tin	18 AWG	24 AWG	Crimp	Stamped	Pin
