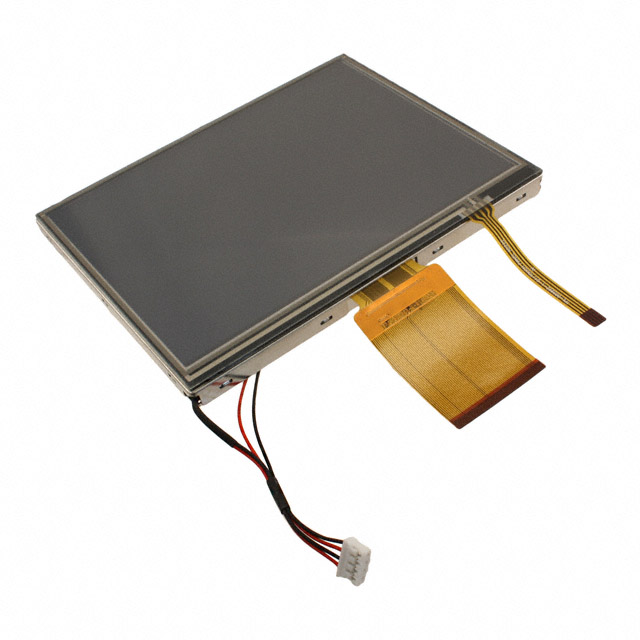

LCT-H320240M57WT
ActiveLumex Opto/Components Inc.
DISPLAY LCD-TFT 320X240 W/TOUCH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCT-H320240M57WT
ActiveLumex Opto/Components Inc.
DISPLAY LCD-TFT 320X240 W/TOUCH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LCT-H320240M57WT | LCT-H320240 Series |
|---|---|---|
| Backlight | LED - White | LED - White |
| Diagonal Screen Size | 5.7 in | 5.7 in |
| Diagonal Screen Size | 144.78 mm | 144.78 mm |
| Display Mode | Transmissive | Transmissive |
| Display Type | TFT - Color | TFT - Color |
| Dot Pitch | - | 0.07 mm |
| Dot Pitch | - | 0.22 mm |
| Dot Pixels | QVGA | QVGA |
| Dot Pixels [x] | 320 pixels | 320 pixels |
| Dot Pixels [y] | 240 pixels | 240 pixels |
| Dot Size | - | 0.22 mm |
| Dot Size [x] | 0.12 mm | 0.12 mm |
| Dot Size [y] | 0.36 mm | 0.22 - 0.36 mm |
| Graphics Color | Green, Red, Blue | Green, Red, Blue |
| Interface | Parallel/Serial | Parallel/Serial |
| Touchscreen | Resistive | Resistive |
| Viewing Area | - | 72 mm |
| Viewing Area | - | 54.5 mm |
| Viewing Area | - | 86.4 mm |
| Viewing Area [x] | 118.26 mm | 118.26 mm |
| Viewing Area [y] | 89.4 mm | 89.4 - 115.2 mm |
LCT-H320240 Series
DISPLAY LCD-TFT 320X240 W/TOUCH
| Part | Display Type | Backlight | Display Mode | Diagonal Screen Size | Diagonal Screen Size | Touchscreen | Viewing Area [y] | Viewing Area [x] | Dot Size [y] | Dot Size [x] | Dot Pixels | Dot Pixels [x] | Dot Pixels [y] | Interface | Graphics Color | Dot Pitch [custom] | Dot Pitch [custom] | Viewing Area [custom] | Viewing Area [custom] | Dot Size [z] | Viewing Area [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. LCT-H320240M57WT | TFT - Color | LED - White | Transmissive | 5.7 in | 144.78 mm | Resistive | 89.4 mm | 118.26 mm | 0.36 mm | 0.12 mm | QVGA | 320 pixels | 240 pixels | Parallel/Serial | Blue, Green, Red | ||||||
Lumex Opto/Components Inc. LCT-H320240M35WT | TFT - Color | LED - White | Transmissive | Resistive | 0.22 mm | QVGA | 320 pixels | 240 pixels | Parallel/Serial | Blue, Green, Red | 0.07 mm | 0.22 mm | 72 mm | 54.5 mm | 0.22 mm | ||||||
Lumex Opto/Components Inc. LCT-H320240M57W | TFT - Color | LED - White | Transmissive | 5.7 in | 144.78 mm | 115.2 mm | 0.36 mm | 0.12 mm | QVGA | 320 pixels | 240 pixels | Parallel/Serial | Blue, Green, Red | 86.4 mm | |||||||
Lumex Opto/Components Inc. LCT-H320240M35W | TFT - Color | LED - White | Transmissive | 0.22 mm | QVGA | 320 pixels | 240 pixels | Parallel/Serial | Blue, Green, Red | 0.07 mm | 0.22 mm | 72 mm | 54.5 mm | 0.22 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LCT-H320240 Series
Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel/Serial 5.7" (144.78mm) 320 x 240 (QVGA)
