LCT-H320240M35W

Active

Lumex Opto/Components Inc.

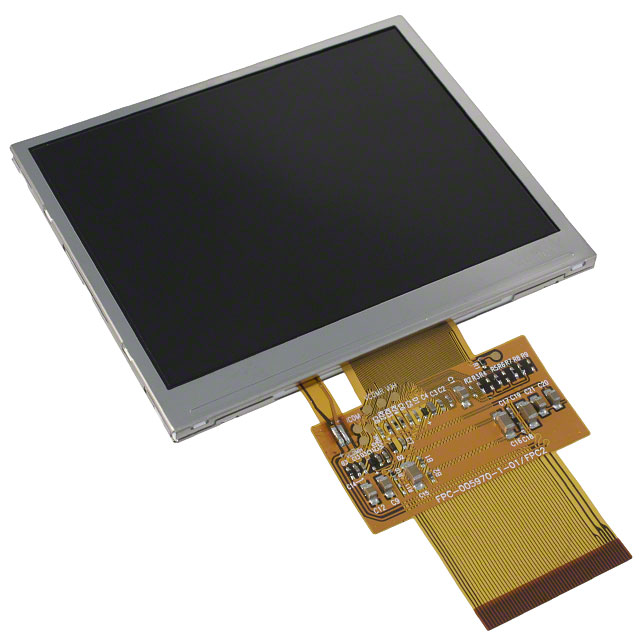

DISPLAY TFT-LCD 320X240

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

DISPLAY TFT-LCD 320X240

Technical Specifications

Parameters and characteristics commom to parts in this series

DISPLAY LCD-TFT 320X240 W/TOUCH

Part	Display Type	Backlight	Display Mode	Diagonal Screen Size	Diagonal Screen Size	Touchscreen	Viewing Area [y]	Viewing Area [x]	Dot Size [y]	Dot Size [x]	Dot Pixels	Dot Pixels [x]	Dot Pixels [y]	Interface	Graphics Color	Dot Pitch [custom]	Dot Pitch [custom]	Viewing Area [custom]	Viewing Area [custom]	Dot Size [z]	Viewing Area [z]
Lumex Opto/Components Inc. LCT-H320240M57WT	TFT - Color	LED - White	Transmissive	5.7 in	144.78 mm	Resistive	89.4 mm	118.26 mm	0.36 mm	0.12 mm	QVGA	320 pixels	240 pixels	Parallel/Serial	Blue, Green, Red
Lumex Opto/Components Inc. LCT-H320240M35WT	TFT - Color	LED - White	Transmissive			Resistive			0.22 mm		QVGA	320 pixels	240 pixels	Parallel/Serial	Blue, Green, Red	0.07 mm	0.22 mm	72 mm	54.5 mm	0.22 mm
Lumex Opto/Components Inc. LCT-H320240M57W	TFT - Color	LED - White	Transmissive	5.7 in	144.78 mm		115.2 mm		0.36 mm	0.12 mm	QVGA	320 pixels	240 pixels	Parallel/Serial	Blue, Green, Red						86.4 mm
Lumex Opto/Components Inc. LCT-H320240M35W	TFT - Color	LED - White	Transmissive						0.22 mm		QVGA	320 pixels	240 pixels	Parallel/Serial	Blue, Green, Red	0.07 mm	0.22 mm	72 mm	54.5 mm	0.22 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel/Serial 3.5" (88.90mm) 320 x 240 (QVGA)

Technical documentation and resources
