Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LP5864MRSMR | LP5864 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Current - Output / Channel | 50 mA | 50 mA |
| Dimming | SPI, I2C, Analog, PWM | SPI, I2C, Analog, PWM |
| Frequency | 31.2 MHz | 31.2 MHz |
| Internal Switch(s) | True | True |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 18 | 18 |
| Operating Temperature [Max] | 125 °C | 85 - 125 °C |
| Operating Temperature [Min] | -55 C | -55 - -40 °C |

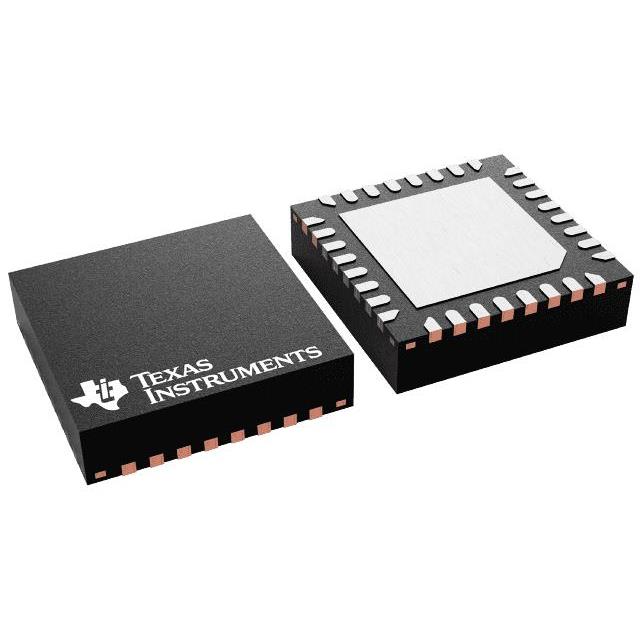

| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (4x4) | 32-VQFN (4x4) |
| Topology | Constant Current | Constant Current |
| Type | Linear | Linear |
| Voltage - Output [Max] | 5.5 V | 5.5 V |
| Voltage - Output [Min] | 2.7 V | 2.7 V |
| Voltage - Supply (Max) [Max] | 5.5 V | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | 1 | $ 1.68 | |
| 3000 | $ 1.14 | |||
| Digikey | Cut Tape (CT) | 1 | $ 1.71 | |
| 10 | $ 1.56 | |||
| 25 | $ 1.52 | |||
| 50 | $ 1.51 | |||
| 100 | $ 1.35 | |||
| 250 | $ 1.35 | |||
| 500 | $ 1.33 | |||
| 1000 | $ 1.27 | |||
| Digi-Reel® | 1 | $ 1.71 | ||
| 10 | $ 1.56 | |||
| 25 | $ 1.52 | |||
| 50 | $ 1.51 | |||
| 100 | $ 1.35 | |||
| 250 | $ 1.35 | |||
| 500 | $ 1.33 | |||
| 1000 | $ 1.27 | |||
| Tape & Reel (TR) | 3000 | $ 1.20 | ||
| 6000 | $ 1.18 | |||
| Mouser Electronics | N/A | 1 | $ 2.02 | |
| 10 | $ 2.01 | |||
| 100 | $ 1.72 | |||
| 3000 | $ 1.07 | |||
| 6000 | $ 1.05 | |||
| Texas Instruments | LARGE T&R | 1 | $ 1.68 | |
| 100 | $ 1.39 | |||
| 250 | $ 1.00 | |||
| 1000 | $ 0.75 | |||
LP5864 Series
4 × 18 LED matrix driver with 8-bit analog and 8-/16-bit PWM dimming
| Part | Current - Output / Channel | Voltage - Output [Max] | Voltage - Output [Min] | Internal Switch(s) | Topology | Number of Outputs | Package / Case | Voltage - Supply (Max) [Max] | Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Frequency | Dimming | Applications | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments LP5864RSMR | 50 mA | 5.5 V | 2.7 V | Constant Current | 18 | 32-VFQFN Exposed Pad | 5.5 V | Linear | Surface Mount | 85 °C | -40 °C | 31.2 MHz | Analog, I2C, PWM, SPI | General Purpose | 32-VQFN (4x4) | |
Texas Instruments LP5864MRSMR | 50 mA | 5.5 V | 2.7 V | Constant Current | 18 | 32-VFQFN Exposed Pad | 5.5 V | Linear | Surface Mount | 125 °C | -55 C | 31.2 MHz | Analog, I2C, PWM, SPI | General Purpose | 32-VQFN (4x4) |
Description
General part information
LP5864 Series
Electronic devices are becoming smarter, requiring to use larger quantity of LEDs for animation and indication purposes and high performance LED matrix driver is required to improve user experience with small solution size.
The LP586x devices are a family of high performance LED matrix drivers. The device integrates 18 constant current sinks with N (N = 1/2/4/6/8/11) switching MOSFETs to support N × 18 LED dots or N × 6 RGB LEDs. The LP5864 integrates 4 MOSFETs for up to 72 LED dots or 24 RGB LEDs.
The LP5864 supports both analog dimming and PWM dimming methods. For analog dimming, each LED dot can be adjusted with 256 steps. For PWM dimming, the integrated 8-bit or 16-bit configurable PWM generators enable smooth and audible-noise-free dimming control. Each LED dot can also be arbitrarily mapped into 8-bit Group PWM to achieve dimming control together.
