CBP37-M

Active

Panduit Corp

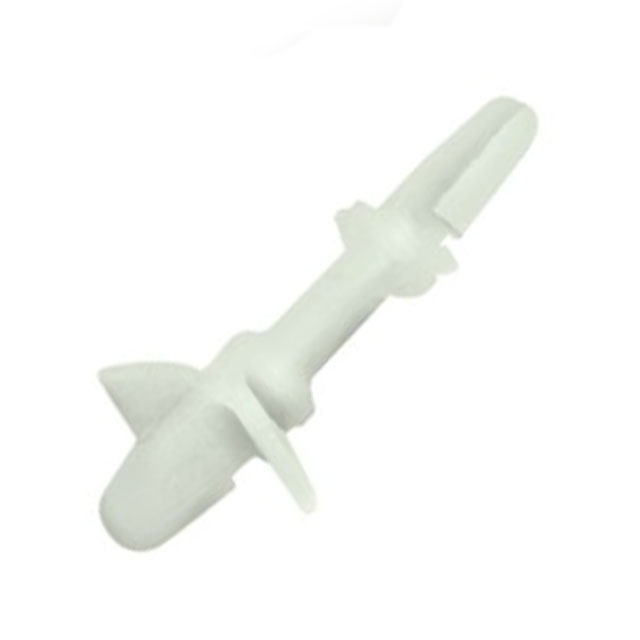

BRD SPT SNAP FIT/LOCK NYLN 9.4MM

Search across all available documentation for this part.

Active

Panduit Corp

BRD SPT SNAP FIT/LOCK NYLN 9.4MM

Technical Specifications

Parameters and characteristics for this part

Specification	CBP37-M

Holding Type	Snap Fit
Length - Overall [x]	15.7 mm
Length - Overall [x]	0.618 "
Material	Nylon
Mounting Hole Diameter [diameter]	3.96 mm
Mounting Hole Diameter [diameter]	0.15625 in
Mounting Hole Diameter [diameter]	0.156 in
Mounting Panel Thickness	1.5 mm
Mounting Panel Thickness	0.06 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.15625 in
Support Hole Diameter [diameter]	3.96 mm
Support Hole Diameter [diameter]	0.156 in
Support Panel Thickness	0.06 in
Support Panel Thickness	1.5 mm

BRD SPT SNAP FIT/LOCK NYLN 9.4MM

Part	Mounting Panel Thickness	Mounting Panel Thickness	Holding Type	Support Panel Thickness	Support Panel Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Material	Mounting Type	Length - Overall [x]	Length - Overall [x]
Panduit Corp CBP37-M	1.5 mm	0.06 in	Snap Fit	0.06 in	1.5 mm	3.96 mm	0.15625 in	0.156 in	0.15625 in	3.96 mm	0.156 in	Nylon	Snap Lock	15.7 mm	0.618 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Board Support Snap Fit / Snap Lock Nylon 0.370" (9.40mm)

Technical documentation and resources
