EDAC Inc.

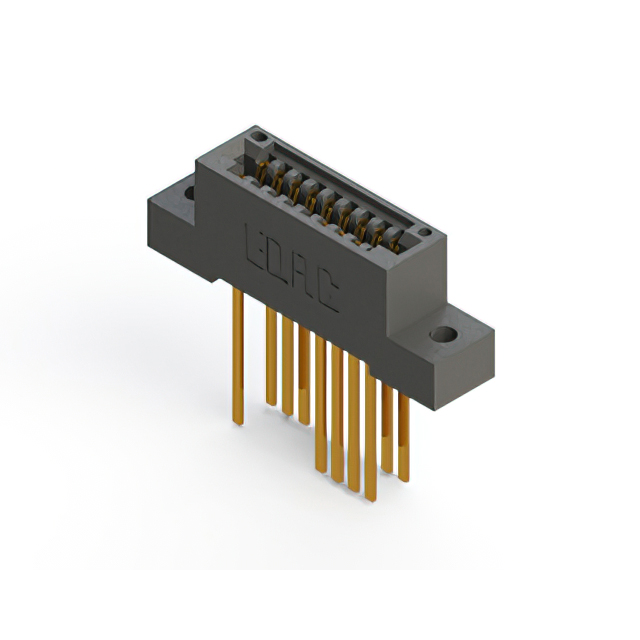

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

395-018-544-202

Active

EDAC Inc.

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	395-018-544-202

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	18
Number of Positions/Bay/Row [custom]	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

395-018 Series

...

Part	Gender	Card Type	Contact Material	Contact Finish	Mounting Type	Termination Rows	Termination	Flange Feature	Flange Feature	Flange Feature	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Number of Positions	Read Out	Number of Positions/Bay/Row [custom]	Material - Insulation	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 395-018-541-512	Female	Non Specified - Dual Edge	Copper Alloy	Gold	Through Hole	2	Wire Wrap	Side Mount Opening Unthreaded	3.25 mm	0.128 in	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	18	Dual	9	Polyester Thermoplastic	2	-40 °C	105 ░C	Black	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 395-018-524-201	Female	Non Specified - Dual Edge	Copper Alloy	Gold	Through Hole	2	Solder				1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	18	Dual	9	Polyester Thermoplastic	2	-40 °C	105 ░C	Black	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 395-018-540-607	Female	Non Specified - Single Edge	Copper Alloy	Gold	Through Hole	1	Wire Wrap	M3 Threaded Insert Top Mount Opening			1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	18	Single	18	Polyester Thermoplastic	1	-40 °C	105 ░C	Black	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 395-018-558-502	Female	Non Specified - Dual Edge	Copper Alloy	Gold	Through Hole Right Angle	2	Solder		3.25 mm	0.128 in	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	18	Dual	9	Polyester Thermoplastic	2	-40 °C	105 ░C	Black	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 395-018-544-202	Female	Non Specified - Dual Edge	Copper Alloy	Gold	Through Hole	2	Wire Wrap	Flush Mount Top Opening Unthreaded			1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	18	Dual	9	Polyester Thermoplastic	2	-40 °C	105 ░C	Black	Cantilever	10 Áin	0.25 Ám	3.25 mm	0.128 "
EDAC Inc. 395-018-521-112	Female	Non Specified - Single Edge	Copper Alloy	Gold	Through Hole	1	Solder	Flush Mount Side Opening Unthreaded			1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	18	Single	18	Polyester Thermoplastic	1	-40 °C	105 ░C	Black	Cantilever	10 Áin	0.25 Ám	3.25 mm	0.128 "
EDAC Inc. 395-018-540-407	Female	Non Specified - Single Edge	Copper Alloy	Gold	Through Hole	1	Wire Wrap	M3 Threaded Insert Top Mount Opening			1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	18	Single	18	Polyester Thermoplastic	1	-40 °C	105 ░C	Black	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 395-018-556-808	Female	Non Specified - Dual Edge	Copper Alloy	Gold	Board Edge Straddle Mount	2	Solder	4-40 Threaded Insert Top Mount Opening			1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	18	Dual	9	Polyester Thermoplastic	2	-40 °C	105 ░C	Black	Cantilever	10 Áin	0.25 Ám			Card Extender
EDAC Inc. 395-018-541-203	Female	Non Specified - Dual Edge	Copper Alloy	Gold	Through Hole	2	Wire Wrap	Floating Bobbin Flush Mount			1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	18	Dual	9	Polyester Thermoplastic	2	-40 °C	105 ░C	Black	Cantilever	10 Áin	0.25 Ám	2.95 mm	0.116 in
EDAC Inc. 395-018-542-808	Female	Non Specified - Dual Edge	Copper Alloy	Gold	Through Hole	2	Wire Wrap	4-40 Threaded Insert Top Mount Opening			1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	18	Dual	9	Polyester Thermoplastic	2	-40 °C	105 ░C	Black	Cantilever	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 7.07
Newark	Each	25	$ 7.72
		50	$ 7.54
		100	$ 7.18
		250	$ 7.00
		500	$ 6.75

Description

General part information

395-018 Series

18 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
