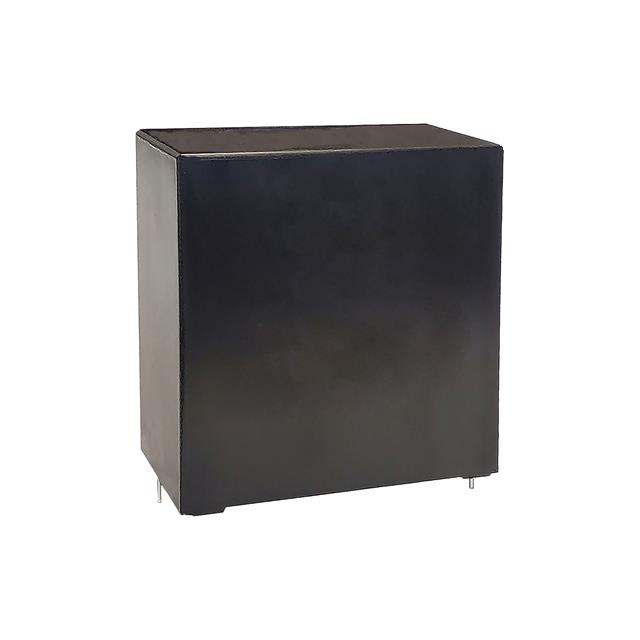

MYH684K300N24

Active

Cornell Dubilier Knowles

CAP FILM 0.68UF 10% 1.5KVDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MYH684K300N24

Active

Cornell Dubilier Knowles

CAP FILM 0.68UF 10% 1.5KVDC RAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.27
		10	$ 4.28
		50	$ 3.48
		100	$ 3.22
		500	$ 2.79
		1000	$ 2.66
		2500	$ 2.52

Description

General part information

MYH Series

0.68 µF Film Capacitor 300V 1500V (1.5kV) Polypropylene (PP), Metallized Radial

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MYH684K300N24	MYH Series

Applications	EMI, RFI Suppression, Automotive	EMI, RFI Suppression, Automotive
Capacitance	680 nF	0.022 - 100000 µF
Dielectric Material	Metallized, Polypropylene (PP)	Metallized, Polypropylene (PP)
Features	Long Life, Low ESR, 85C/85% Humidity, Low ESL, THB	Long Life, Low ESR, 85C/85% Humidity, Low ESL, THB
Height - Seated (Max)	-	0.453 - 0.492 "
Height - Seated (Max)	-	0.374 - 12.5 mm
Height - Seated (Max)	-	9.5 mm
Height - Seated (Max) [Max] [z]	28.8 mm	22.5 - 37.8 mm
Height - Seated (Max) [Max] [z]	1.134 "	0.886 - 1.488 in
Lead Spacing	37.5 mm	10 - 37.5 mm
Lead Spacing	1.476 in	0.394 - 1.476 in
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial	Radial
Ratings	AEC-Q200, Y2	AEC-Q200, Y2
Size / Dimension	-	13 - 32 mm
Size / Dimension	-	13 mm
Size / Dimension	-	0.512 - 1.26 in
Size / Dimension	-	0.157 - 0.866 in
Size / Dimension	-	4 - 22 mm
Termination	PC Pins	PC Pins
Tolerance	10 %	10 %
Voltage Rating - AC	300 V	300 V
Voltage Rating - DC	1.5 kVDC	1.5 kVDC
Voltage Rating - DC	1.5 kV	1.5 kV

MYH Series

CAP FILM 0.27UF 10% 1.5KVDC RAD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Termination	Ratings	Capacitance	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Applications	Package / Case	Voltage Rating - DC	Voltage Rating - DC	Lead Spacing	Lead Spacing	Voltage Rating - AC	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Cornell Dubilier Knowles MYH274K300H21	-40 °C	110 °C	10 %	PC Pins	AEC-Q200, Y2	0.27 µF	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	22.8 mm	0.898 in	Metallized, Polypropylene (PP)	Automotive, EMI, RFI Suppression	Radial	1.5 kVDC	1.5 kV	27.5 mm	1.083 in	300 V	Through Hole	32 mm	13 mm	1.26 in	0.512 in
Cornell Dubilier Knowles MYH472K300D10	-40 °C	110 °C	10 %	PC Pins	AEC-Q200, Y2	4700 pF	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB			Metallized, Polypropylene (PP)	Automotive, EMI, RFI Suppression	Radial	1.5 kVDC	1.5 kV	10 mm	0.394 in	300 V	Through Hole	13 mm		0.512 in	0.197 "	5 mm	0.453 "	11.5 mm
Cornell Dubilier Knowles MYH104K300H11	-40 °C	110 °C	10 %	PC Pins	AEC-Q200, Y2	100000 pF	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB			Metallized, Polypropylene (PP)	Automotive, EMI, RFI Suppression	Radial	1.5 kVDC	1.5 kV	27.5 mm	1.083 in	300 V	Through Hole	32 mm		1.26 in	0.354 in	9 mm
Cornell Dubilier Knowles MYH684K300N24	-40 °C	110 °C	10 %	PC Pins	AEC-Q200, Y2	680 nF	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	28.8 mm	1.134 "	Metallized, Polypropylene (PP)	Automotive, EMI, RFI Suppression	Radial	1.5 kVDC	1.5 kV	37.5 mm	1.476 in	300 V	Through Hole
Cornell Dubilier Knowles MYH682K300D11	-40 °C	110 °C	10 %	PC Pins	AEC-Q200, Y2	6800 pF	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB			Metallized, Polypropylene (PP)	Automotive, EMI, RFI Suppression	Radial	1.5 kVDC	1.5 kV	10 mm	0.394 in	300 V	Through Hole						0.492 in	12.5 mm
Cornell Dubilier Knowles MYH153K300E10	-40 °C	110 °C	10 %	PC Pins	AEC-Q200, Y2	15000 pF	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB			Metallized, Polypropylene (PP)	Automotive, EMI, RFI Suppression	Radial	1.5 kVDC	1.5 kV	15 mm	0.591 in	300 V	Through Hole	18 mm		0.709 in	0.197 "	5 mm	0.453 "	11.5 mm
Cornell Dubilier Knowles MYH334K300H24	-40 °C	110 °C	10 %	PC Pins	AEC-Q200, Y2	0.33 µF	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	28.8 mm	1.134 "	Metallized, Polypropylene (PP)	Automotive, EMI, RFI Suppression	Radial	1.5 kVDC	1.5 kV	27.5 mm	1.083 in	300 V	Through Hole	32 mm		1.26 in	0.551 in	14 mm
Cornell Dubilier Knowles MYH154K300H11	-40 °C	110 °C	10 %	PC Pins	AEC-Q200, Y2	0.15 ÁF	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB			Metallized, Polypropylene (PP)	Automotive, EMI, RFI Suppression	Radial	1.5 kVDC	1.5 kV	27.5 mm	1.083 in	300 V	Through Hole	32 mm		1.26 in	0.354 in	9 mm
Cornell Dubilier Knowles MYH824K300H30	-40 °C	110 °C	10 %	PC Pins	AEC-Q200, Y2	0.82 µF	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	37.8 mm	1.488 in	Metallized, Polypropylene (PP)	Automotive, EMI, RFI Suppression	Radial	1.5 kVDC	1.5 kV	27.5 mm	1.083 in	300 V	Through Hole	32 mm		1.26 in	0.866 in	22 mm
Cornell Dubilier Knowles MYH223K300E11	-40 °C	110 °C	10 %	PC Pins	AEC-Q200, Y2	0.022 µF	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB			Metallized, Polypropylene (PP)	Automotive, EMI, RFI Suppression	Radial	1.5 kVDC	1.5 kV	15 mm	0.591 in	300 V	Through Hole	18 mm		0.709 in	0.236 in	6 mm	0.492 in	12.5 mm
