845-012-521-212
ActiveEDAC Inc.

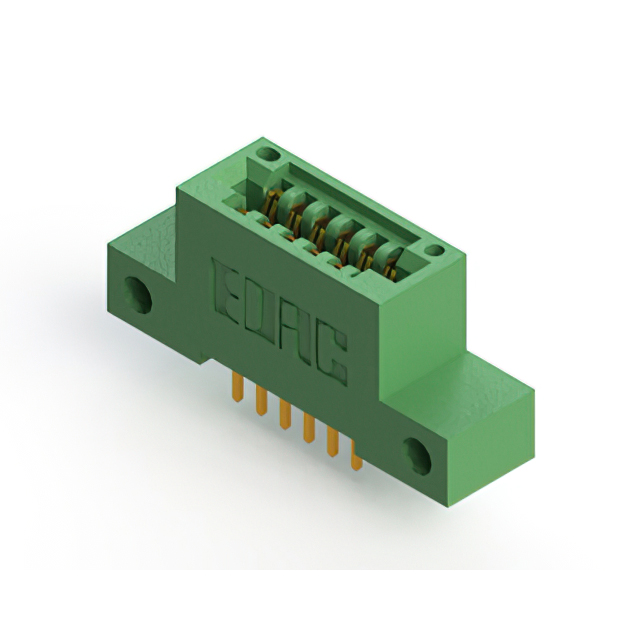

CONN EDGE DUAL FMALE 12POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-012-521-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 12POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-012-521-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-012 Series
...
| Part | Material - Insulation | Flange Feature | Flange Feature | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Read Out | Pitch [x] | Pitch [x] | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Mounting Type | Number of Rows | Number of Positions | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Card Type | Termination | Termination Rows | Color | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Diallyl Phthalate (DAP) | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 10 Áin | 0.25 Ám | Single | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole | 1 | 12 | Gold | 125 °C | -40 °C | 12 | Non Specified - Single Edge | Wire Wrap | 1 | Green | Copper Alloy | ||
EDAC Inc. | Diallyl Phthalate (DAP) | Flush Mount Side Opening Unthreaded | 10 Áin | 0.25 Ám | Dual | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole | 2 | 12 | Gold | 125 °C | -40 °C | 6 | Non Specified - Dual Edge | Solder | 2 | Green | Copper Alloy | 3.25 mm | 0.128 " | ||
EDAC Inc. | Diallyl Phthalate (DAP) | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Dual | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole | 2 | 12 | Gold | 125 °C | -40 °C | 6 | Non Specified - Dual Edge | Solder | 2 | Green | Copper Alloy | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | M3 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Dual | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole | 2 | 12 | Gold | 125 °C | -40 °C | 6 | Non Specified - Dual Edge | Wire Wrap | 2 | Green | Copper Alloy | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | Flush Mount Side Opening Unthreaded | 10 Áin | 0.25 Ám | Single | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole Right Angle | 1 | 12 | Gold | 125 °C | -40 °C | 12 | Non Specified - Single Edge | Solder | 1 | Green | Copper Alloy | 3.25 mm | 0.128 " | ||
EDAC Inc. | Diallyl Phthalate (DAP) | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 10 Áin | 0.25 Ám | Dual | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole Right Angle | 2 | 12 | Gold | 125 °C | -40 °C | 6 | Non Specified - Dual Edge | Solder | 2 | Green | Copper Alloy | ||
EDAC Inc. | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | Dual | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole | 2 | 12 | Gold | 125 °C | -40 °C | 6 | Non Specified - Dual Edge | Solder | 2 | Green | Copper Alloy | 3.25 mm | 0.128 " | ||
EDAC Inc. | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | Dual | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole | 2 | 12 | Gold | 125 °C | -40 °C | 6 | Non Specified - Dual Edge | Solder Eyelet(s) | 2 | Green | Copper Alloy | 3.25 mm | 0.128 " | ||
EDAC Inc. | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | Dual | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole | 2 | 12 | Gold | 125 °C | -40 °C | 6 | Non Specified - Dual Edge | Wire Wrap | 2 | Green | Copper Alloy | 3.96 mm | 0.156 in | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | 10 Áin | 0.25 Ám | Single | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole | 1 | 12 | Gold | 125 °C | -40 °C | 12 | Non Specified - Single Edge | Solder | 1 | Green | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 50.68 | |
Description
General part information
845-012 Series
12 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
