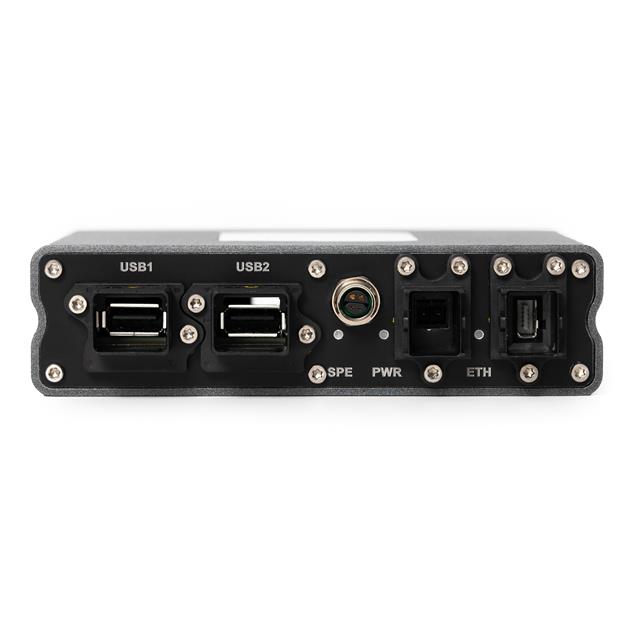

PRN.000.025-0009

Active

Perinet

SBC 1.33GHZ 2 CORE 2GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsperiMICA Product Summary periMICA Quick Start Guide

PRN.000.025-0009

Active

Perinet

SBC 1.33GHZ 2 CORE 2GB RAM

Deep-Dive with AI

DocumentsperiMICA Product Summary periMICA Quick Start Guide

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 688.78

Description

General part information

PRN.000.025 Series

Single Board Computer 1.33GHz 2 Core 2GB RAM Marvell Armada 385 ARM Cortex-A9, ARMv7

Documents

Technical documentation and resources

periMICA Product Summary

Datasheet

periMICA Quick Start Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PRN.000.025-0009	PRN.000.025 Series

Core Processor	Marvell Armada 385 ARM Cortex-A9, ARMv7	Marvell Armada 385 ARM Cortex-A9, ARMv7, TI AM3352 ARM Cortex-A8, ARMv7
Digital I/O Lines	10	10
Ethernet	100 Mbps	100 Mbps
Number of Cores	2	1 - 2
Operating Temperature [Max]	75 °C	75 °C
Operating Temperature [Min]	-25 °C	-25 °C
Power (Watts)	15 W	15 W
RAM Capacity/Installed	2 GB	1 - 2 GB
Size / Dimension [x]	132.08 mm	132 - 132.08 mm
Size / Dimension [x]	5.2 in	5.197 - 5.2 in
Size / Dimension [y]	86.36 mm	86 - 86.36 mm
Size / Dimension [y]	3.4 in	3.386 - 3.4 in
Speed	-	1 GHz
Storage Interface	SD, eMMC	SD, eMMC
USB	-	USB 2.0 (1)
USB [custom]	USB 2.0 (1), USB 3.0 (1)	USB 2.0 (1), USB 3.0 (1)
Watchdog Timer	False	False

PRN.000.025 Series

SBC 1.33GHZ 2 CORE 2GB RAM

Part	Storage Interface	Power (Watts)	Number of Cores	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Core Processor	RAM Capacity/Installed	Ethernet	Digital I/O Lines	USB [custom]	Speed	USB
Perinet PRN.000.025-0012	eMMC, SD	15 W	2	3.386 in	5.197 in	86 mm	132 mm	-25 °C	75 °C	Marvell Armada 385 ARM Cortex-A9, ARMv7	2 GB	100 Mbps	10	USB 2.0 (1), USB 3.0 (1)
Perinet PRN.000.025-0007	eMMC, SD	15 W	1	3.4 in	5.2 in	86.36 mm	132.08 mm	-25 °C	75 °C	TI AM3352 ARM Cortex-A8, ARMv7	1 GB	100 Mbps	10		1 GHz	USB 2.0 (1)
Perinet PRN.000.025-0008	eMMC, SD	15 W	2	3.4 in	5.2 in	86.36 mm	132.08 mm	-25 °C	75 °C	Marvell Armada 385 ARM Cortex-A9, ARMv7	2 GB	100 Mbps	10	USB 2.0 (1), USB 3.0 (1)
Perinet PRN.000.025-0011	eMMC, SD	15 W	1	3.386 in	5.197 in	86 mm	132 mm	-25 °C	75 °C	TI AM3352 ARM Cortex-A8, ARMv7	1 GB	100 Mbps	10		1 GHz	USB 2.0 (1)
Perinet PRN.000.025-0002	eMMC, SD	15 W	1	3.4 in	5.2 in	86.36 mm	132.08 mm	-25 °C	75 °C	TI AM3352 ARM Cortex-A8, ARMv7	1 GB	100 Mbps	10		1 GHz	USB 2.0 (1)
Perinet PRN.000.025-0006	eMMC, SD	15 W	1	3.4 in	5.2 in	86.36 mm	132.08 mm	-25 °C	75 °C	TI AM3352 ARM Cortex-A8, ARMv7	1 GB	100 Mbps	10		1 GHz	USB 2.0 (1)
Perinet PRN.000.025-0009	eMMC, SD	15 W	2	3.4 in	5.2 in	86.36 mm	132.08 mm	-25 °C	75 °C	Marvell Armada 385 ARM Cortex-A9, ARMv7	2 GB	100 Mbps	10	USB 2.0 (1), USB 3.0 (1)
Perinet PRN.000.025-0001	eMMC, SD	15 W	1	3.4 in	5.2 in	86.36 mm	132.08 mm	-25 °C	75 °C	TI AM3352 ARM Cortex-A8, ARMv7	1 GB	100 Mbps	10		1 GHz	USB 2.0 (1)
Perinet PRN.000.025-0010	eMMC, SD	15 W	1	3.386 in	5.197 in	86 mm	132 mm	-25 °C	75 °C	TI AM3352 ARM Cortex-A8, ARMv7	1 GB	100 Mbps	10		1 GHz	USB 2.0 (1)
Perinet PRN.000.025-0005	eMMC, SD	15 W	2	3.4 in	5.2 in	86.36 mm	132.08 mm	-25 °C	75 °C	Marvell Armada 385 ARM Cortex-A9, ARMv7	2 GB	100 Mbps	10	USB 2.0 (1), USB 3.0 (1)
