RVAMJKSME-B24

Active

Belden Inc.

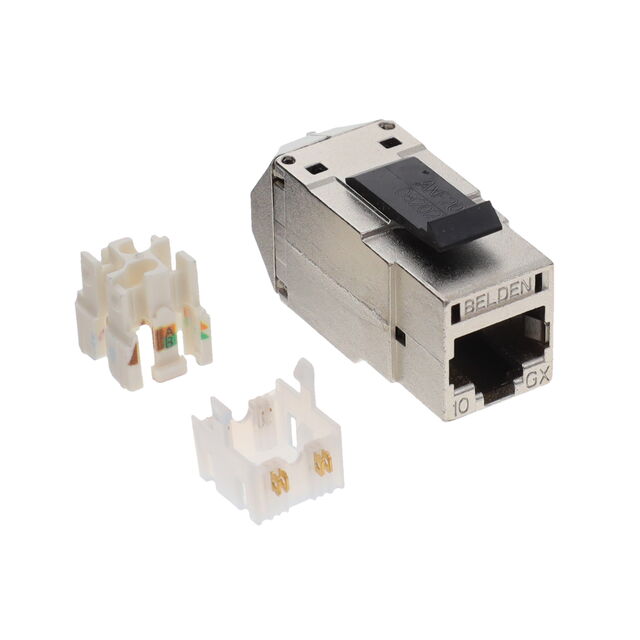

REVCONN 10GX JACK METAL

Search across all available documentation for this part.

Active

Belden Inc.

REVCONN 10GX JACK METAL

Technical Specifications

Parameters and characteristics for this part

Specification	RVAMJKSME-B24

Exterior Contact Finish	Gold
Exterior Contact Finish Thickness	1.27 Ám
Exterior Contact Finish Thickness	50 Áin
Exterior Contact Material	Copper Clad
Exterior Housing Color	Silver
Exterior Housing Material	Zinc Alloy
Exterior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)
Interior Contact Finish	Gold
Interior Contact Material	Copper Alloy
Interior Housing Color	Silver
Interior Housing Material	Zinc Alloy
Interior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Ratings	Cat6a
Specifications	10G Base-T
Style	Modular

Part	Interior Contact Finish	Interior Type (Adapter End)	Exterior Housing Material	Exterior Type (Adapter End)	Exterior Contact Material	Ratings	Style	Interior Housing Color	Specifications	Exterior Housing Color	Exterior Contact Finish Thickness	Exterior Contact Finish Thickness	Interior Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Exterior Contact Finish	Interior Housing Material
Belden Inc. RVAMJKSME-B24	Gold	Modular Jack 8p8c (RJ45 Ethernet)	Zinc Alloy	Modular Jack 8p8c (RJ45 Ethernet)	Copper Clad	Cat6a	Modular	Silver	10G Base-T	Silver	1.27 Ám	50 Áin	Copper Alloy	-10 °C	60 °C	Gold	Zinc Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Insert Modular Jack 8p8c (RJ45, Ethernet) To Modular Jack 8p8c (RJ45, Ethernet) Silver
