SS22SBP2

Active

NKK Switches

ULTRA-MINIATURE SLIDE; PART STATUS: ACTIVE; POLES: DPDT; CONTACT TIMING: SHORTING (MBB); CIRCUITS: ON-ON; CURRENT RATING: 100MA (DC); RATING (DC): 30V; ACTUATOR TYPE: STANDARD; ACTUATOR LENGTH: 2.00MM; CONTACT MATERIAL: PHOSPHOR BRONZE; CONTACT FINISH: SILVER; MOUNTING TYPE: THROUGH HOLE; TERMINATION STYLE: PC PIN; RATING: 0.1

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +1

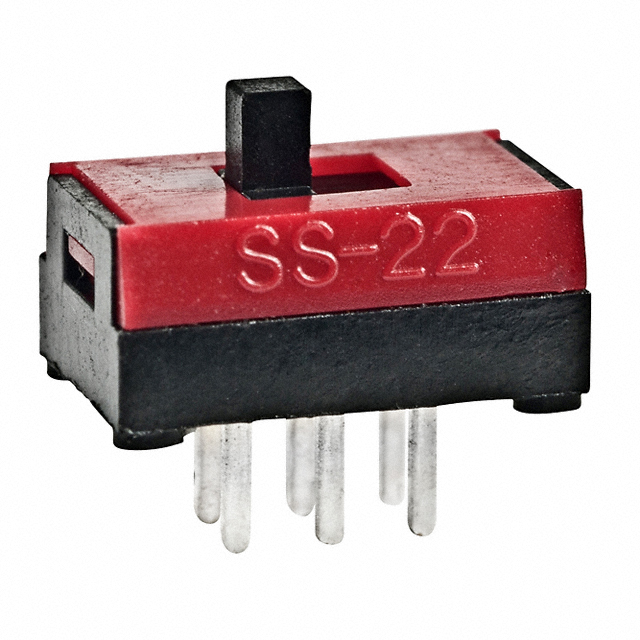

SS22SBP2

Active

NKK Switches

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS22SBP2

Actuator Length [x]	2 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Type	Standard
Circuit	DPDT
Contact Finish	Silver
Contact Material	Phosphor Bronze
Contact Timing	Shorting
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-15 °C
Switch Function	On-On
Switch Travel	2 mm
Termination Style	PC Pin
Voltage Rating - DC	30 V

SS12SB Series

Part	Contact Timing	Switch Travel	Circuit	Electrical Life	Switch Function	Actuator Length [x]	Termination Style	Voltage Rating - DC	Actuator Type	Mechanical Life	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Material	Current Rating (Amps)	Contact Finish	Voltage Rating - AC
NKK Switches SS12SBP2	Shorting	2 mm	SPDT	10000 Cycles	On-On	2 mm	PC Pin	30 V	Standard	10000 Steps	Nylon Polyamide (PA)	-15 °C	60 °C	Through Hole	Phosphor Bronze	100 mA	Silver
NKK Switches SS12SBH4	Shorting	2 mm	SPDT	10000 Cycles	On-On	2.5 mm	PC Pin	28 V	Standard	10000 Steps	Nylon Polyamide (PA)	-15 °C	60 °C	Through Hole Right Angle	Phosphor Bronze	0.4 VA	Gold	28 V
NKK Switches SS22SBH4	Shorting	2 mm	DPDT	10000 Cycles	On-On	2.5 mm	PC Pin	28 V	Standard	10000 Steps	Nylon Polyamide (PA)	-15 °C	60 °C	Through Hole Right Angle	Phosphor Bronze	0.4 VA	Gold	28 V
NKK Switches SS22SBP2	Shorting	2 mm	DPDT	10000 Cycles	On-On	2 mm	PC Pin	30 V	Standard	10000 Steps	Nylon Polyamide (PA)	-15 °C	60 °C	Through Hole	Phosphor Bronze	100 mA	Silver
NKK Switches SS22SBH2	Shorting	2 mm	DPDT	10000 Cycles	On-On	2.5 mm	PC Pin	30 V	Standard	10000 Steps	Nylon Polyamide (PA)	-15 °C	60 °C	Through Hole Right Angle	Phosphor Bronze	100 mA	Silver
