BZM27/Z0000/53A

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

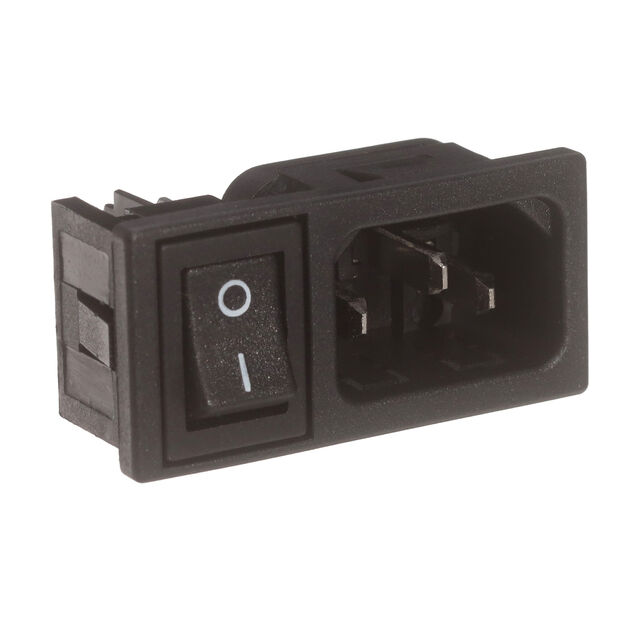

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BZM27/Z0000/53A	BZM27/Z Series

Accomodates a Fuse	False	False
Approval Agency	VDE, CSA, UL, ENEC	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	45.9 mm	45.9 mm
Panel Cutout Dimensions [y]	21.3 mm	21.3 mm
Panel Thickness	1 mm	1 - 3 mm
Panel Thickness	0.039 in	0.039 - 0.118 in
Panel Thickness	-	0.059 in
Panel Thickness	-	1.5 mm
Switch Features	Switch On-Off	Switch On-Off, Illuminated
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Approval Agency	Panel Thickness	Panel Thickness	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Type	Termination	Termination	Termination	Mounting Type	Current Rating - Appliance Inlet	Connector Style	Switch Features	Filter Type	Material Flammability Rating	Panel Thickness [custom]	Panel Thickness [custom]
BULGIN LIMITED BZM27/Z0000/53A	CSA, ENEC, UL, VDE	1 mm	0.039 in	250 VAC	21.3 mm	45.9 mm	Receptacle, Male Blades - Module	0.25 in	6.3 mm	Quick Connect	Panel Mount, Snap-In	10 A	IEC 320-C14	Switch On-Off	Unfiltered - Commercial	UL94 V-0
BULGIN LIMITED BZM27/Z0000/57D	CSA, ENEC, UL, VDE	3 mm	0.118 in	250 VAC			Receptacle, Male Blades - Module	0.25 in	6.3 mm	Quick Connect	Panel Mount, Snap-In	10 A	IEC 320-C14	Switch On-Off	Unfiltered - Commercial	UL94 V-0
BULGIN LIMITED BZM27/Z0000/57A	CSA, ENEC, UL, VDE	1 mm	0.039 in	250 VAC			Receptacle, Male Blades - Module	0.25 in	6.3 mm	Quick Connect	Panel Mount, Snap-In	10 A	IEC 320-C14	Switch On-Off	Unfiltered - Commercial	UL94 V-0
BULGIN LIMITED BZM27/Z0000/63A	CSA, ENEC, UL, VDE	1 mm	0.039 in	250 VAC			Receptacle, Male Blades - Module	0.25 in	6.3 mm	Quick Connect	Panel Mount, Snap-In	10 A	IEC 320-C14	Illuminated, Switch On-Off	Unfiltered - Commercial	UL94 V-0
BULGIN LIMITED BZM27/Z0000/63B	CSA, ENEC, UL, VDE			250 VAC			Receptacle, Male Blades - Module	0.25 in	6.3 mm	Quick Connect	Panel Mount, Snap-In	10 A	IEC 320-C14	Illuminated, Switch On-Off	Unfiltered - Commercial	UL94 V-0	0.059 in	1.5 mm
